Product Overview

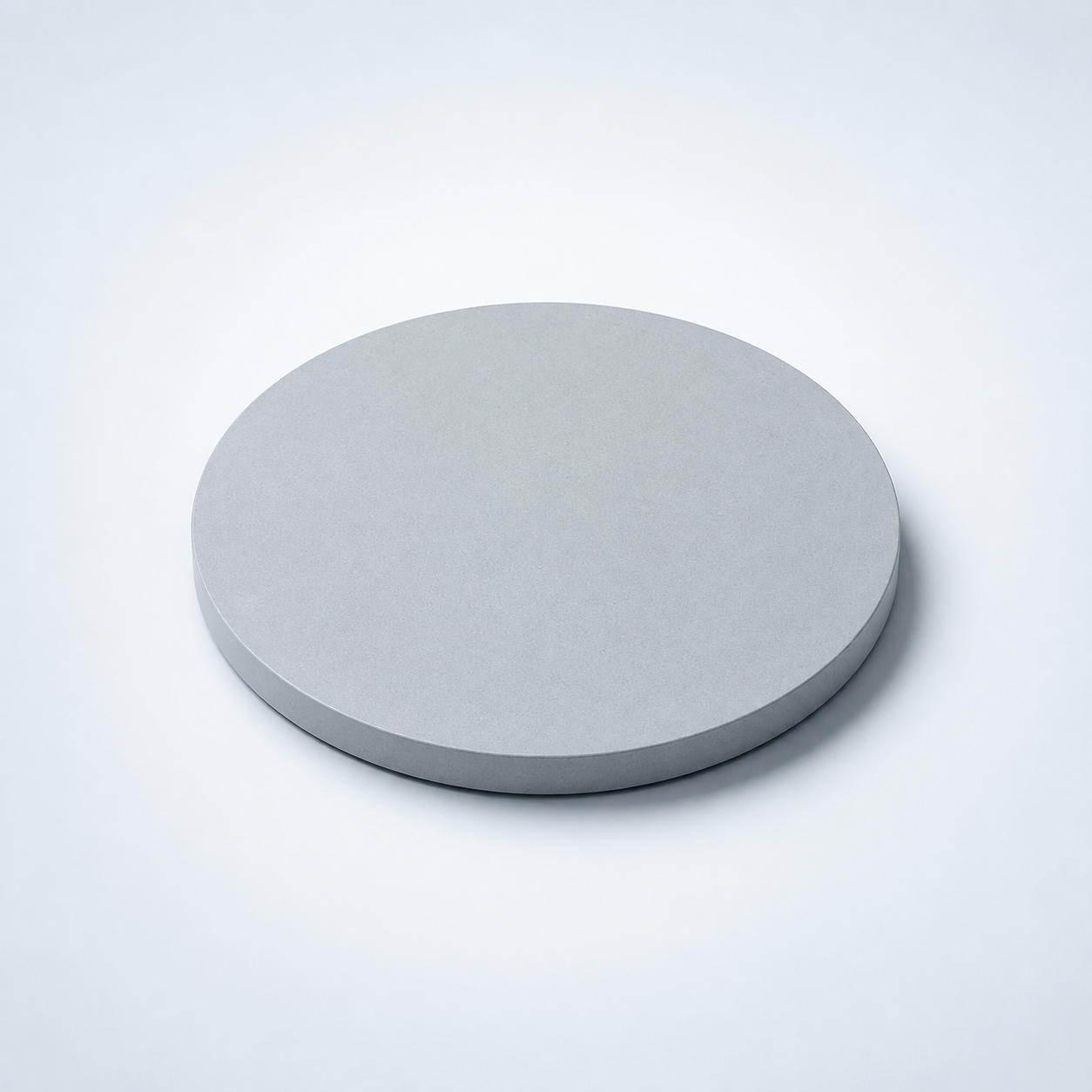

Zinc Oxide with Alumina Sputtering Target (ZnO/Al2O3) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Composition | ZnO + Al₂O₃ (1–3 wt% Al₂O₃) | Controls conductivity & transparency |
| Purity | 99.9% – 99.99% | Reduces impurities affecting film quality |
| Density | ≥ 95% – 99% theoretical | Ensures stable sputtering |
| Diameter | 50 – 300 mm (custom) | Compatible with sputtering systems |
| Thickness | 3 – 6 mm | Influences target lifetime |
| Resistivity (film) | ~10⁻³ – 10⁻⁴ Ω·cm (typical) | Key for TCO performance |
| Bonding | Copper backing (In / elastomer) | Improves heat dissipation |
| Material | Key Advantage | Typical Application |
|---|---|---|
| ZnO/Al₂O₃ (AZO) | Cost-effective, stable TCO | Displays, solar cells |
| ITO (In₂O₃:SnO₂) | Excellent conductivity & transparency | High-end displays |
| ZnO (undoped) | High transparency, low cost | Optical coatings |
| FTO (SnO₂:F) | Good thermal stability | Solar cells, glass coatings |
| Question | Answer |
|---|---|
| Can the Al₂O₃ doping level be customized? | Yes, typical ranges are 1–3 wt%, but can be adjusted based on required conductivity. |
| Is ZnO/Al₂O₃ a replacement for ITO? | In many applications, it serves as a cost-effective alternative with good performance. |
| What sputtering method is suitable? | Both RF and DC magnetron sputtering are commonly used. |
| Is bonding required? | For high-power or large-area deposition, bonding to a copper backing plate is recommended. |
| What industries use this material most? | Display manufacturing, photovoltaics, and optoelectronics. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Zinc Oxide with Alumina better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Zinc Oxide with Alumina target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Zinc Oxide with Alumina target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as ZnO/Al2O3?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Zinc Oxide with Alumina target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Zinc Oxide with Alumina?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
