Zinc Sulfide Evaporation Materials

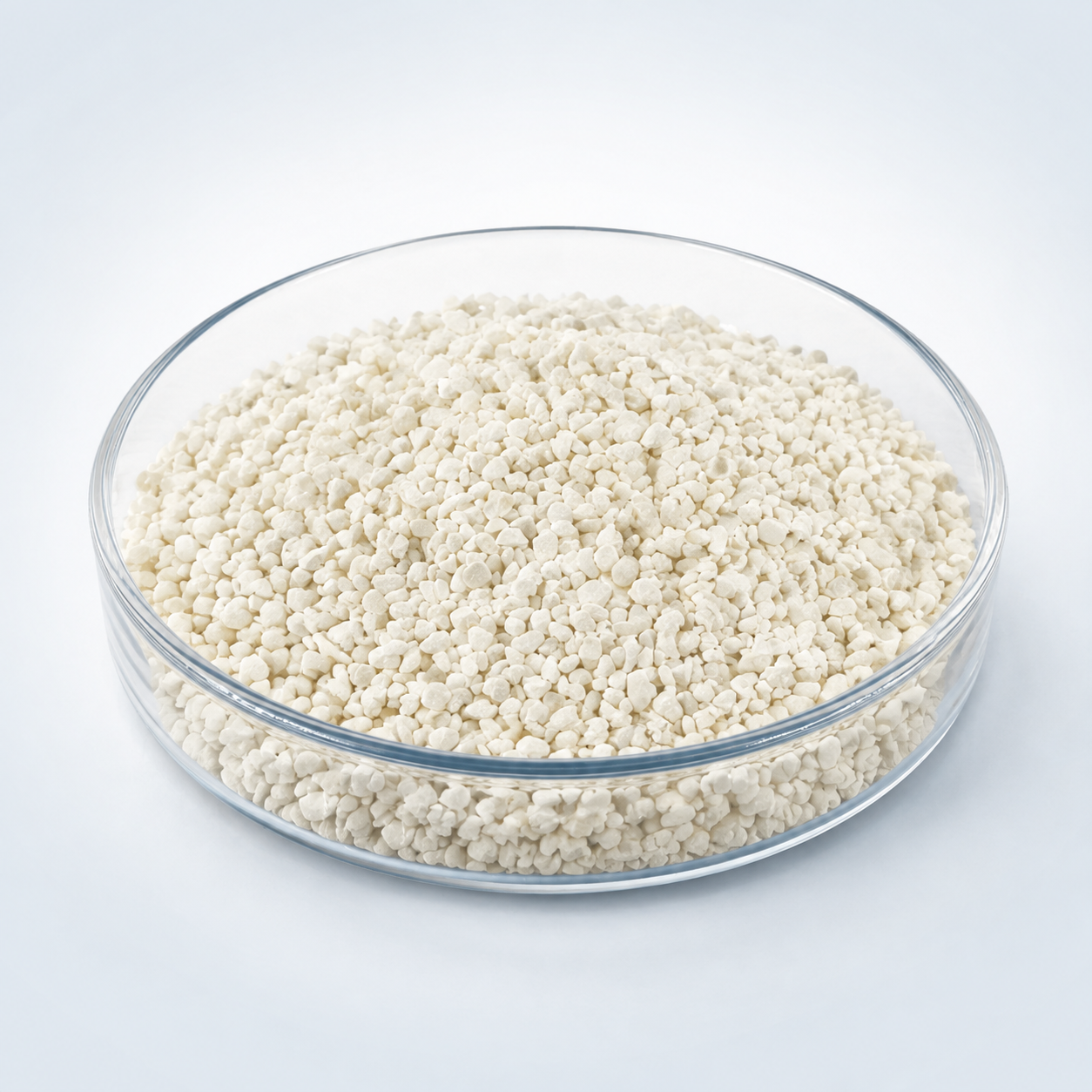

Zinc Sulfide Evaporation Materials, ZnS

Material: Zinc Sulfide (ZnS)
Chemical Formula: ZnS
Catalog No.: TFM-EVM-0358
Purity: 99.9%~99.999%
Shape: Powder/ Granule/ Custom-made

Zinc Sulfide (ZnS) evaporation material is supplied by Thin Film Materials (TFM) for vacuum evaporation and thin-film deposition. Available form, size, purity, and packaging can be customized to suit research and production requirements.

MSDS File

Product Overview

Zinc Sulfide Evaporation Materials (ZnS) is a chalcogenide evaporation material used in optical, infrared, semiconductor, thermoelectric, and phase-change thin-film research. Because sulfur-, selenium-, and tellurium-containing compounds can contain volatile constituents, evaporation may be incongruent and the deposited film can deviate from the nominal source composition. Deposition temperature, source heating profile, rate control, and film-composition analysis are therefore important when stoichiometry is critical.

Evaporation Behavior and Process Considerations

Chalcogenides often contain constituents with different vapor pressures, so the film composition may evolve during evaporation. Lower source temperatures and controlled rates can help reduce loss of volatile components, but the optimum method depends on the specific compound. When stoichiometry is critical, deposited-film composition should be verified rather than inferred only from the source label.

Technical Data

ParameterTypical Value / RangeImportance
Chemical FormulaZnSDefines optical and semiconductor properties
Purity99.9% – 99.99%Minimizes absorption and scattering losses
FormPieces / Pellets / GranulesCompatible with various crucibles
SizeCustom (2–20 mm typical pieces)Matches evaporation source capacity
Density (bulk)~4.09 g/cm³Relevant for deposition rate calculations
Deposition MethodThermal / E-beam EvaporationEnsures controlled film growth
MaterialKey AdvantageTypical Application
Zinc Sulfide (ZnS)High refractive index & IR transparencyIR coatings & filters
Zinc Selenide (ZnSe)Broader IR transmissionCO₂ laser optics
Magnesium Fluoride (MgF₂)Low refractive indexAnti-reflective layers
Titanium Dioxide (TiO₂)Very high refractive indexVisible multilayer stacks
QuestionAnswer
Is ZnS suitable for thermal evaporation?Yes, ZnS is commonly used in both thermal and electron beam evaporation systems.
Is optical-grade purity necessary?For IR and precision optical coatings, high purity is strongly recommended.
Can it be used in multilayer stacks?Yes, it is often paired with low-index materials to form interference coatings.
Is ZnS sensitive to moisture?It is relatively stable but should be stored in dry conditions to prevent contamination.
Are customized pellet sizes available?Yes, material size and form can be tailored to your equipment.

Typical Thin-Film Applications

  • Infrared, optical, phase-change, semiconductor, and thermoelectric thin films
  • Compound semiconductor and chalcogenide multilayer research
  • Composition-sensitive R&D where volatile-element control is important

Source Form and Ordering Considerations

For quotation, provide the material or formula, purity, desired source form and size, quantity, evaporation method if known, and any crucible, boat, or e-beam hearth constraints. For compound materials, include the target film composition or application when possible so that source form and process risk can be reviewed together. TFM can supply pellets, pieces, granules, tablets, or other custom forms subject to material manufacturability.

Frequently Asked Questions

Can Zinc Sulfide evaporate incongruently?

Yes. Sulfur, selenium, and tellurium compounds can contain constituents with different vapor pressures, so the deposited film may not exactly match the nominal source composition.

How can volatile-component loss be reduced when evaporating Zinc Sulfide?

A controlled source temperature, stable deposition rate, and appropriate substrate temperature can help. The optimum conditions depend on the specific compound and should be confirmed by film analysis.

Is thermal or e-beam evaporation better for Zinc Sulfide?

The better method depends on vapor pressure, decomposition temperature, source form, and desired rate. Some chalcogenides can be thermally evaporated, while others are more controllable with localized e-beam heating.

Should Zinc Sulfide film composition be measured after deposition?

Yes when stoichiometry is important. Source composition alone does not guarantee film composition because preferential evaporation and re-evaporation can occur.

What source form can TFM supply for Zinc Sulfide?

Depending on the material, TFM can review pellets, pieces, granules, or other compact forms suitable for the customer’s evaporation source.

What should I include in a Zinc Sulfide RFQ?

Provide composition, purity, source form and size, quantity, evaporation method, and the film-composition or application requirements that matter to the project.

Reviews

There are no reviews yet.

Be the first to review “Zinc Sulfide Evaporation Materials, ZnS”

Your email address will not be published. Required fields are marked *

Related Products

Related products

FAQ

  • They are high‐purity substances (e.g. metals, alloys, or compounds) used in thermal or electron‐beam evaporation processes to form thin films on substrates.

  • Typically, they’re processed into a form (often ingots, pellets, or wires) that can be efficiently vaporized. Preparation emphasizes high purity and controlled composition to ensure film quality.

  • Thermal evaporation and electron-beam (e-beam) evaporation are the two main techniques, where material is heated (or bombarded with electrons) until it vaporizes and then condenses on the substrate.

  • Thermal evaporation heats the material directly (often using a resistive heater), while e-beam evaporation uses a focused electron beam to locally heat and vaporize the source material—each method offering different control and energy efficiency.

  • Key parameters include source temperature, vacuum level, deposition rate, substrate temperature, and the distance between the source and the substrate. These factors influence film uniformity, adhesion, and microstructure.

  • Evaporation generally produces high-purity films with excellent control over thickness, and it is especially suitable for materials with relatively low melting points or high vapor pressures.

  • Challenges include issues with step coverage (due to line-of-sight deposition), shadowing effects on complex topographies, and possible re-evaporation of material from the substrate if temperature isn’t properly controlled.

  • Common evaporation materials include noble metals (e.g., gold, silver), semiconductors (e.g., silicon, germanium), metal oxides, and organic compounds—each chosen for its specific optical, electrical, or mechanical properties.

  • Selection depends on desired film properties (conductivity, optical transparency, adhesion), compatibility with the evaporation process, and the final device application (semiconductor, optical coating, etc.).

  • Optimizing substrate temperature, deposition rate, and chamber vacuum are critical for ensuring that the film adheres well and forms the intended microstructure without defects.

  • Troubleshooting may involve checking the source material’s purity, ensuring stable source temperature, verifying the vacuum level, adjusting the substrate’s position or temperature, and monitoring deposition rate fluctuations.

While evaporation tends to yield very high purity films with excellent thickness control, it is limited by its line-of-sight nature. In contrast, sputtering can deposit films more uniformly on complex surfaces and is more versatile for a broader range of materials.
