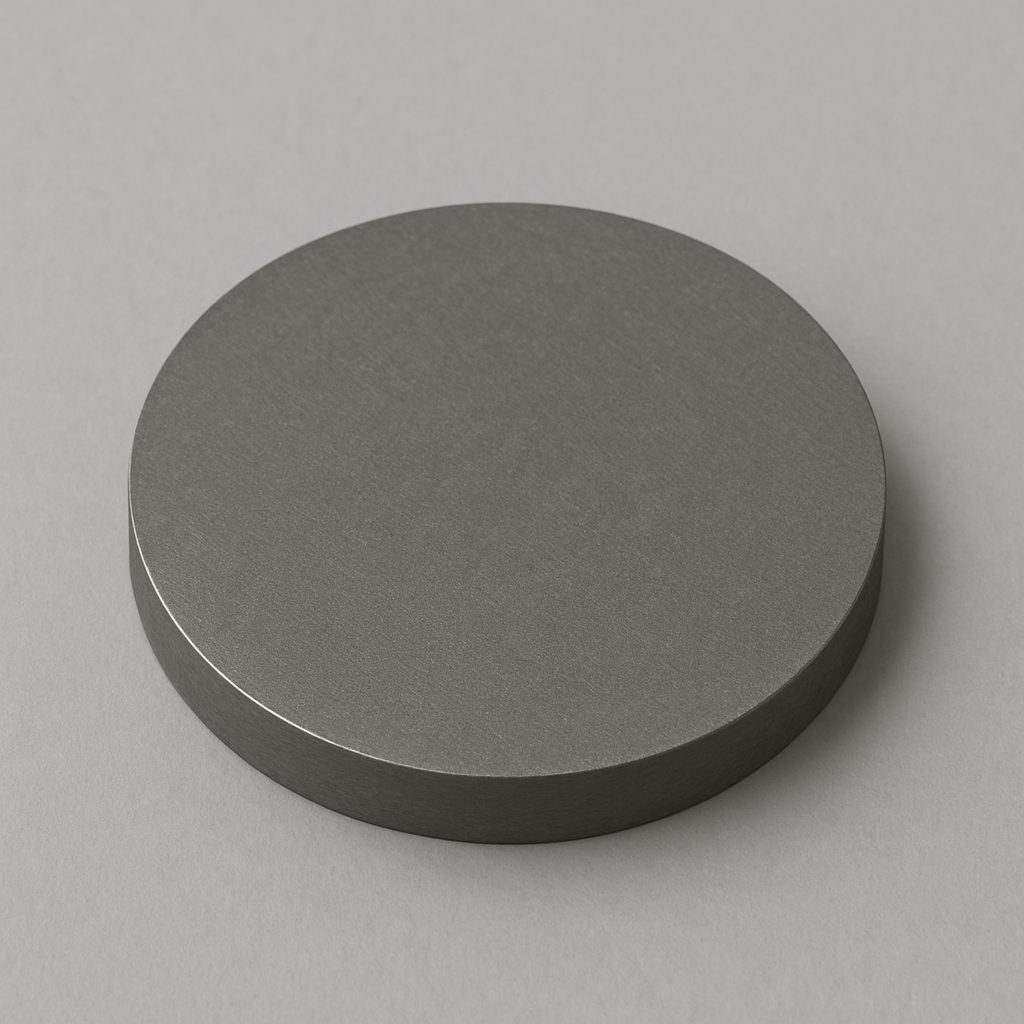

Zirconium Yttrium Sputtering Target, ZrY

Zirconium Yttrium Sputtering Target, ZrY
Catalog No.: TFM-SPT-0708
One listed specification: ZrY target 50/50 at% 99.5% ø200×6mm

For a quotation, specify the required composition, purity, dimensions, quantity and cathode details. Include any backing, bonding or inspection requirements.

Product Overview

Zirconium Yttrium Sputtering Target (ZrY) is a composition-specific sputtering target for thin-film deposition and PVD process development. The practical specification normally includes chemistry, purity, dimensions, density, target configuration, and any bonding or backing requirement needed by the sputtering cathode.

Explore related materials in the Sputtering Targets catalog.

Material and Deposition Characteristics

Power mode and process conditions should be selected according to the target conductivity, thermal behavior, and the requirements of the cathode system. For less common materials, conservative initial power density and film-composition verification are good practice.

Technical Data

ParameterTypical Value / RangeImportance
Purity99.5% – 99.9%Minimizes film contamination
CompositionZr-Y (custom ratios, e.g., 50:50 at%)Tailored for application needs
Diameter25 – 200 mm (custom)Fits multiple sputtering systems
Thickness3 – 10 mmBalances target life and sputtering rate
Backing PlateCopper / MolybdenumImproves heat dissipation and stability
MaterialKey AdvantageTypical Application
Zirconium Yttrium (ZrY)Enhanced ionic conductivity & stabilitySemiconductor & SOFC
Zirconium Oxide (ZrO₂)High thermal stability, low conductivityOptical & protective coatings
Yttrium Oxide (Y₂O₃)Excellent ionic conductivitySolid oxide electrolytes
Zirconium Carbide (ZrC)High hardness and toughnessCutting tools, coatings
QuestionAnswer
Can the ZrY composition be customized?Yes, Zr:Y ratios (e.g., 50/50, 60/40 at%) can be tailored.
What bonding options are available?Copper or molybdenum backing plates are standard.
How are the targets packaged?Vacuum-sealed, foam-protected, and shipped in export-safe cartons.
Is ZrY suitable for high-temperature applications?Yes, it performs well in thermal and oxidative environments.
Which industries use ZrY most?Semiconductors, optics, fuel cells, aerospace, and advanced materials R&D.

Typical Thin-Film Applications

  • Thin-film research and materials-development projects requiring a composition-specific sputtering source
  • Semiconductor, optical, energy, electronic, or laboratory coatings depending on the material system
  • Custom R&D work where target composition, purity, and geometry need to be specified together

Target Configuration and Ordering Considerations

For quotation and manufacturability review, provide target size, thickness, purity or alloy composition, quantity, and the sputtering gun or cathode model if known. If a bonded assembly is required, include backing-plate material, bonding preference, and any dimensional tolerances, surface-finish needs, or inspection-document requirements. TFM can also review customer drawings or old-target samples for replacement builds.

Frequently Asked Questions

What is the main reason to use a Zirconium Yttrium sputtering target?

It provides a composition-specific source for thin-film deposition when the target material itself is important to the desired film chemistry or process.

How should the sputtering mode for Zirconium Yttrium be selected?

The power mode should be chosen according to target conductivity, thermal behavior, and equipment capability. Less-conductive materials are commonly evaluated with RF power.

Why are density and microstructure important for Zirconium Yttrium targets?

These factors can influence erosion stability, thermal behavior, particle generation, and the risk of cracking or local hot spots.

Can Zirconium Yttrium be supplied with a backing plate?

Yes. If the material is brittle or the cathode requires it, a bonded configuration can be reviewed according to target size, thickness, cooling, and power.

Does target composition always equal film composition?

No. Film chemistry may differ because of sputtering yields, process conditions, substrate temperature, re-sputtering, and chamber history. Film verification is recommended when composition matters.

What should I provide to request a quotation for Zirconium Yttrium?

Please provide the composition, purity, dimensions, quantity, target configuration, cathode details, and any drawing or inspection requirements.

Order Now

ZrY target 50/50 at% 99.5% ø200×6mm, ZrY target Y-3% at% 99.5% ø200×6mm, ZrY target 88/12 at% 99.5% ø200×6mm, Zr-Y TRG 88/12 wt% 3N ø3″×6.35 mm

Reviews

There are no reviews yet.

Be the first to review “Zirconium Yttrium Sputtering Target, ZrY”

Your email address will not be published. Required fields are marked *

Related Products

FAQ

It’s the source material (in solid form) used in sputter deposition to eject atoms or molecules that then form a thin film on a substrate.

Targets can be pure metals (e.g., gold, copper, aluminum), ceramics (e.g., Al₂O₃, SiO₂, TiO₂), alloys, or composites—chosen based on the film’s desired properties.



Manufacturing routes depend on the material and target specification. Metal targets may be cast and machined, while some ceramic targets are consolidated by sintering. Ask for the product-specific route and inspection criteria when these affect qualification.



In a vacuum chamber, a plasma (typically argon) bombards the target, ejecting atoms that travel and condense on a substrate, forming a thin film.



Key factors include the target’s purity, density, grain structure, and the sputtering yield (i.e. how many atoms are ejected per incident ion), as well as operating conditions like power density and gas pressure.



Operators monitor target erosion (often by measuring the depth of the eroded “race track”) or track total energy delivered (kilowatt-hours) until it reaches a threshold that can compromise film quality.



Bonding may be selected for brittle targets, thinner precious-metal targets, or a cathode that needs a specific backing and cooling arrangement. It is not a universal requirement. Provide target and backing dimensions, the cathode model, and operating conditions for assembly review.



DC is commonly used with conductive targets. RF is often used for poorly conducting or insulating targets to mitigate surface charging; other power modes may be suitable depending on the target, cathode, and process. Confirm the mode against the equipment and material.



In reactive sputtering, a reactive gas (e.g., oxygen or nitrogen) is introduced to form compound films on the substrate, but it may also “poison” the target surface if not carefully controlled.



Customer-supplied powder acceptance is not assumed. Provide material identity, lot traceability, composition and impurity analysis, quantity, and handling constraints in the RFQ. TFM must confirm feasibility and acceptance criteria before any material is sent.



Targets should be stored in clean, dry conditions (often in original packaging or re-wrapped in protective materials) and handled with gloves to avoid contamination, ensuring optimal performance during deposition.

Deposition rate depends on factors such as target material and composition, power density, working gas pressure, substrate distance, and the configuration of the sputtering system (e.g., magnetron design).
