Understanding Basket Heaters: A Crucible-Free Heating Solution

Introduction

In the realm of material processing and thermal treatment, basket heaters represent an efficient, adaptable alternative to traditional crucible-based heating methods. These heating systems are especially favored in thin-film deposition, thermal evaporation, and laboratory environments where material purity, ease of handling, and flexibility are critical. Unlike crucibles, which enclose materials in a solid container, basket heaters provide an open structure that securely holds the target material, facilitating direct and uniform thermal exposure. This unique design supports a wide range of source materials, especially metals and compounds in granular, pellet, or small chunk forms.

This article offers a comprehensive overview of basket heaters, delving into their design, operational principles, types, use cases, and how they compare with conventional heating methods. Whether you’re a researcher, lab technician, or industrial engineer, understanding basket heaters can open up new avenues for efficient, contamination-free thermal processing.

What Are Basket Heaters?

Basket heaters are specialized thermal sources used to heat solid materials without enclosing them in a crucible. Constructed using refractory metals like tungsten (W), molybdenum (Mo), or tantalum (Ta), these heaters feature a cage-like or woven design that supports the material while allowing even heat distribution.

Typically used in vacuum systems or controlled atmosphere chambers, basket heaters rely on resistive or radiant heating principles. When electrical current is passed through the metallic basket structure, it heats up due to resistance, thereby transferring energy directly to the material placed inside.

Key Characteristics

• Open design: Enables efficient radiative and conductive heating.
• Material versatility: Suitable for irregularly shaped or fragile materials.
• Reusability: Many basket heaters can be used multiple times with proper care.
• No contamination: Eliminates potential interaction between crucible materials and target substance.

Why Choose Basket Heaters Over Crucibles?

While crucibles remain a staple in many thermal processing systems, they are not always ideal. Here’s how basket heaters provide a practical alternative:

1. Material Compatibility

Crucibles, especially those made from ceramics or quartz, can react with certain materials at high temperatures. Basket heaters, constructed from inert high-melting-point metals, reduce the risk of chemical contamination.

2. Improved Heat Transfer

The open mesh structure of basket heaters ensures superior heat transfer. Unlike crucibles that may insulate the material, basket heaters promote even heating, minimizing gradients and ensuring uniform material vaporization.

3. Ease of Replacement and Maintenance

Since basket heaters are relatively simple structures, they’re easy to replace, clean, or modify. There are no concerns about cracking or spalling as seen with ceramic crucibles after repeated use.

4. Reusability

While many crucibles degrade over time due to material interactions or thermal cycling, metal basket heaters can often be reused multiple times, especially when processing non-reactive materials.

Types of Basket Heaters

1. Woven Wire Basket Heaters

These are constructed from a tightly wound mesh or braided wires. Tungsten and molybdenum are common choices due to their excellent high-temperature performance.

Advantages:

• Uniform heating
• Good structural integrity
• Customizable shapes

Ideal For:

• Pellets, powders, or irregular particles

2. Rod-Type Basket Heaters

These heaters feature rod or ribbon-like arms arranged in a circular or oval frame. Material is loaded into the central void.

Advantages:

• Durable and rigid
• High watt density

Ideal For:

• Heavier chunks and crystalline materials

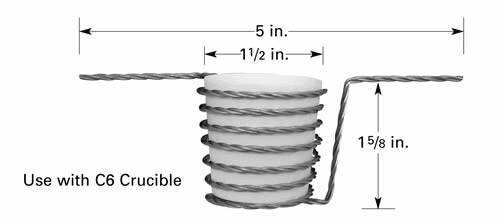

3. Coil-Based Basket Heaters

This type incorporates a coiled heating element, allowing wraparound heating for better thermal efficiency.

Advantages:

• High surface area contact
• Faster heat-up rates

Ideal For:

• Oxides and low-melting materials

4. Custom Fabricated Basket Heaters

Designed for specific thermal systems or experimental setups, these heaters can incorporate features like thermocouple mounts or shielding.

Advantages:

• Tailored for specific needs
• Can integrate additional sensors

Ideal For:

• Precision R&D applications

Material Choices for Basket Heaters

Choosing the right material for your basket heater is crucial to avoid contamination and ensure durability at target operating temperatures.

Note: Always match the heater material with the chemistry of the evaporant to avoid alloying or degradation.

Applications of Basket Heaters

1. Thermal Evaporation in Vacuum Deposition

Basket heaters are widely used in PVD systems to evaporate metals or oxides onto substrates. The open form allows better control over deposition rates and helps avoid hot spots.

2. Research and Development

Labs use basket heaters for small-scale material testing, alloying studies, and thermally-driven reactions.

3. Crystal Growth

Some crystal growth procedures, especially those using physical vapor transport, benefit from the open design of basket heaters.

4. Semiconductor and Optoelectronic Fabrication

Heaters that avoid crucible contamination are essential in the production of optical coatings, photovoltaic films, and other sensitive applications.

5. Rare Material Processing

Highly reactive or expensive materials (like lithium compounds or rare earths) benefit from basket heater processing due to minimized losses and cleaner results.

Operating Principles

The performance of basket heaters is dictated by:

• Ohmic Heating: The resistive material heats up due to electric current.
• Radiant Heat Transfer: The heat radiates directly to the material.
• Controlled Atmosphere or Vacuum: Basket heaters usually operate in high-vacuum or inert gas environments to prevent oxidation.

Important Considerations:

• Voltage and Current Ratings: Always verify heater specifications.
• Power Supply Matching: Use regulated power supplies to prevent thermal runaways.
• System Integration: Ensure compatibility with shutter mechanisms or deposition masks if used in vacuum chambers.

Design Guidelines

When designing or selecting a basket heater:

1. Evaluate Material Form: Choose a structure that will hold your source without spillage.
2. Consider Melting Points: Make sure both the heater and material are thermally compatible.
3. Size Appropriately: A tight fit improves thermal efficiency but may increase stress; balance accordingly.
4. Check Mounting Options: Some systems use clip-on designs, others need screw-mounting or slot guides.

How to Use a Basket Heater Safely

• Initial Conditioning: Run a blank cycle to burn off contaminants before the first use.
• Load Evenly: Avoid material pile-up to maintain uniform heating.
• Use Thermal Shields: To prevent radiant heat loss and improve efficiency.
• Monitor Chamber Pressure: Evaporation rates can spike if pressure rises unexpectedly.
• Replace When Warped or Contaminated: Metal fatigue or deposits can compromise heating performance.

Reusability and Maintenance

Basket heaters are often reusable, especially those made from tungsten or molybdenum. Key maintenance steps include:

• Visual Inspection: Look for oxidation, deformation, or discoloration.
• Cleaning: Use vacuum-compatible solvents or plasma cleaning.
• Storage: Store in dry, inert environments to avoid oxidation.

Comparison with Other Heating Methods

Advantages of Basket Heaters

• Fast thermal response
• Minimized contamination
• High-temperature stability
• Reduced material loss
• Excellent for fragile or reactive substances

Challenges and Limitations

• Not ideal for liquids
• Initial cost higher than ceramic crucibles
• May require custom mounts or power configurations
• Not suitable for all evaporation systems

Tips for Selecting a Basket Heater

• Match material type (W, Mo, Ta) to your source material’s melting point and reactivity.
• Choose size based on evaporation area and load capacity.
• Verify power handling and voltage requirements.
• Consider pre-welded leads for easier integration.

Common Use Cases in Industry

• Optical Coating Labs: Evaporation of MgF₂, Al₂O₃, TiO₂
• Aerospace: Thin film coatings on turbine components
• University Research: Alloy development, phase change studies
• Microelectronics: Contact layer metallization

Future of Basket Heater Technology

Advancements in additive manufacturing and precision machining are enabling even more complex basket heater designs. Some future directions include:

• Hybrid structures: Combining mesh with ceramic support frames
• Sensor-embedded heaters: For real-time temperature feedback
• Automated material feeders: To replenish source during operation

Conclusion

Basket HeatersBasket heaters offer a powerful, flexible, and contamination-resistant alternative to traditional crucibles in thermal processing environments. Their open structure, high thermal efficiency, and compatibility with a wide range of materials make them indispensable in vacuum deposition systems and other advanced applications. By selecting the right basket heater for your specific needs—considering size, power, material compatibility, and system design—you can significantly improve your process efficiency and product quality.
