Thin film deposition has become a cornerstone of modern manufacturing in electronics, optics, and materials science. Central to these processes are sputtering targets—materials from which atoms are ejected and deposited onto a substrate to form thin films. However, simply preparing a target material isn’t sufficient. To ensure thermal and mechanical stability during deposition, these targets often require bonding to a backing plate. This is where bonding methods like Indium, Elastomeric, and Solder bonding play a critical role.
In this article, we explore the fundamentals of these three target bonding techniques, comparing their advantages, limitations, and suitable applications. Understanding these methods is essential for researchers, engineers, and manufacturers who aim to optimize performance, minimize downtime, and extend target life.
The Importance of Target Bonding
Why Bonding is Necessary
During high-power sputtering, especially in magnetron sputtering systems, targets are subjected to significant thermal loads. This heat must be efficiently transferred away from the target to prevent cracking, warping, or even catastrophic failure. Bonding the target to a backing plate—usually made of copper or molybdenum—helps dissipate this heat uniformly.
Additionally, bonding provides mechanical stability. Uneven or poor bonding can lead to delamination or reduced deposition rates. Therefore, choosing the right bonding method based on your operating conditions and materials is vital.
Overview of Target Bonding Techniques
Target bonding techniques fall into three main categories:
- Indium Bonding
- Elastomeric Bonding
- Solder Bonding
Each has its own physical and thermal properties, as well as implications for ease of use and reliability.
Indium Bonding
What is Indium Bonding?
Indium bonding uses a thin layer of indium (In), a soft, malleable metal with a low melting point (156.6°C), to create a strong thermal interface between the target and backing plate. Due to its ductility and excellent thermal conductivity, indium is ideal for applications where thermal expansion mismatch is a concern.
Process
- A thin foil of indium is placed between the target and the backing plate.
- Heat and pressure are applied to melt the indium and ensure intimate contact.
- The assembly is cooled under pressure, forming a reliable metallurgical bond.
Advantages
- Excellent thermal conductivity: Facilitates efficient heat transfer.
- Softness and ductility: Accommodates differential thermal expansion between target and backing plate.
- Reworkable: Can be separated and re-bonded with minimal risk of damage.
Limitations
- Limited to low-temperature processes: Not suitable for targets operating above ~150°C.
- Material cost: Indium is more expensive than other bonding materials.
Applications
- Semiconductor deposition
- Optical coating systems
- R&D environments requiring reworkable setups
Related Products

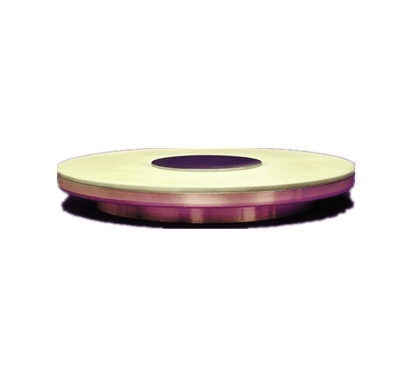

Indium-Bonded Sputtering Targets are available from TFM with various customization options to suit high-precision needs.
Elastomeric Bonding
What is Elastomeric Bonding?
Elastomeric bonding uses a polymer-based adhesive, often silicone or other flexible resins, to adhere the target to the backing plate. It is particularly suited for materials that are brittle, fragile, or thermally sensitive.
Process
- A layer of elastomeric adhesive is applied between the target and the plate.
- Curing occurs either at room temperature or under mild heat, depending on the adhesive formulation.
Advantages
- Low-stress bonding: Reduces risk of cracking for delicate targets.
- Room-temperature processing: Suitable for temperature-sensitive applications.
- Versatile: Can bond dissimilar materials with high coefficient of thermal expansion (CTE) mismatches.
Limitations
- Lower thermal conductivity: Not ideal for high-power applications.
- Limited high-temperature stability: Most elastomers degrade above 200°C.
- Non-reworkable: Once cured, the bond is permanent.
Applications
- Fragile ceramic and oxide targets
- R&D and prototype fabrication
- Applications with low to medium thermal load
Related Products

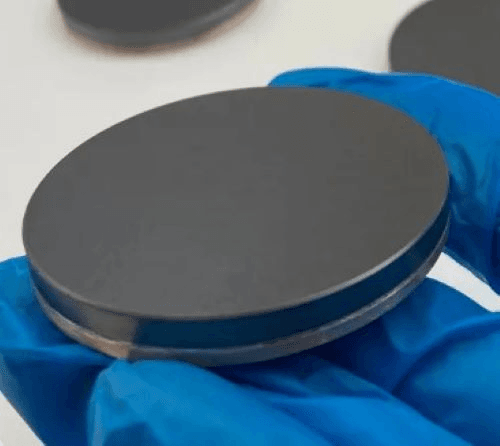

TFM offers Elastomeric Target Bonding Services for a wide range of sputtering targets including ceramics, oxides, and other temperature-sensitive materials.
Solder Bonding
What is Solder Bonding?
Solder bonding is a high-temperature method that uses a metallic solder alloy to form a strong, conductive joint between the target and the backing plate. This technique is ideal for high-performance industrial environments requiring strong and durable bonding.
Process
- A layer of solder alloy (e.g., Sn-Pb, Au-Sn, or other eutectic compositions) is introduced between the target and the plate.
- The assembly is heated to melt the solder, typically at temperatures between 183°C and 280°C.
- Upon cooling, the solder solidifies, creating a robust metallurgical bond.
Advantages
- High mechanical strength: Suitable for high-stress environments.
- Thermal durability: Performs well at elevated temperatures.
- Good thermal conductivity: Provides efficient heat dissipation.
Limitations
- High processing temperature: May not be suitable for delicate materials.
- Non-reworkable: Difficult to dismantle without damaging the target.
- Potential CTE mismatch issues: Requires careful material selection.
Applications
- Production-scale PVD systems
- High-temperature deposition environments
- Durable bonds for long sputtering cycles
Comparison Table: Indium vs. Elastomeric vs. Solder Bonding
| Feature | Indium Bonding | Elastomeric Bonding | Solder Bonding |
|---|---|---|---|
| Thermal Conductivity | Excellent | Moderate to Low | Good |
| Max Operating Temp | ~150°C | ~200°C | ~400°C+ |
| Reworkability | Yes | No | No |
| Mechanical Strength | Moderate | Low | High |
| Suitable for Fragile Targets | Yes | Yes | No |
| Cost | High | Low | Moderate |
| Bonding Complexity | Moderate | Low | High |
Selecting the Right Bonding Method
Considerations for Selection
When choosing a bonding method, several factors must be considered:
- Target Material: Brittle ceramics may not tolerate the heat or stress of solder bonding.
- Deposition Temperature: Indium is limited to low temperatures, while solder can withstand higher ones.
- Desired Reworkability: For research labs where targets are frequently changed, reworkable bonding is a plus.
- Thermal Conductivity Needs: High-power sputtering benefits from highly conductive bonds like indium or solder.
- Cost: Budget constraints may dictate the choice of bonding method.
Expert Advice
It’s often beneficial to consult with bonding service providers like TFM to evaluate the best option based on your specific materials and system configuration.
Innovations and Future Trends
As thin film technology advances, so do bonding methods. Researchers are exploring hybrid bonding techniques that combine metallic and polymer layers, adaptive adhesives that change phase with temperature, and nanomaterial-enhanced bonding layers for improved thermal conductivity.
Furthermore, the push toward lead-free and environmentally friendly soldering solutions (e.g., Au-Sn alloys) is transforming traditional solder bonding. Similarly, indium-free metallic bonding techniques are being explored due to rising indium costs and supply concerns.
Frequently Asked Questions (FAQs)
Q1: Can indium bonding be reused?
Yes, indium bonding can be carefully dismantled and reused if handled properly, making it ideal for R&D.
Q2: Is elastomeric bonding suitable for high-power sputtering?
No, it’s better for low-to-medium power applications or fragile materials that cannot tolerate heat.
Q3: What type of bonding is best for ceramic oxide targets?
Elastomeric bonding is preferred due to its low-stress application and room-temperature curing.
Q4: Which bonding method is the most thermally conductive?
Indium bonding offers the best thermal conductivity due to indium’s physical properties.
Q5: Can I use solder bonding for all target materials?
Not always. The target material must withstand the soldering temperature, and thermal expansion mismatch must be addressed.
Conclusion
Choosing the right target bonding method is critical for optimizing performance, reducing costs, and ensuring consistent deposition quality in thin film applications. Indium, elastomeric, and solder bonding each offer unique benefits and limitations. The selection should be based on the target material, deposition temperature, rework needs, and system specifications.
At TFM, we provide high-quality target bonding services tailored to meet the needs of research labs and industrial production environments. Whether you need a reworkable indium bond, a flexible elastomeric joint, or a durable solder attachment, we are here to assist you in every step of your thin film journey.
