Introduction
In the realm of ultra-high vacuum (UHV) technology, maintaining system integrity and cleanliness is paramount. As processes such as thin film deposition, semiconductor fabrication, and surface science research require increasingly stringent vacuum conditions, even seemingly minor components like viewport shutters play a critical role. A viewport shutter, though simple in design, serves as a gatekeeper for one of the most vulnerable points in a UHV chamber—the viewport.
Viewports provide visual access or optical coupling into a vacuum chamber, and shuttering mechanisms help protect them from deposition, contamination, and thermal damage. This article offers a comprehensive overview of the design, working principles, and functional importance of viewport shutters in UHV systems.
What Is a Viewport in UHV Systems?
A viewport is a sealed optical window that allows researchers or equipment to visually observe or transmit light, lasers, or radiation into a vacuum environment. It is typically constructed from optical-grade materials such as quartz, sapphire, or fused silica, and mounted into vacuum flanges like ConFlat (CF) or KF.
Viewports are essential in:
- Optical diagnostics and spectroscopy
- Laser beam entry and exit
- Plasma observation
- In-situ visual monitoring
Because viewports are transparent and delicate, they are especially susceptible to coating during sputtering, evaporation, or plasma processes. Any buildup of materials on the optical surface can degrade transmission, distort imaging, and even lead to thermal stress failure.

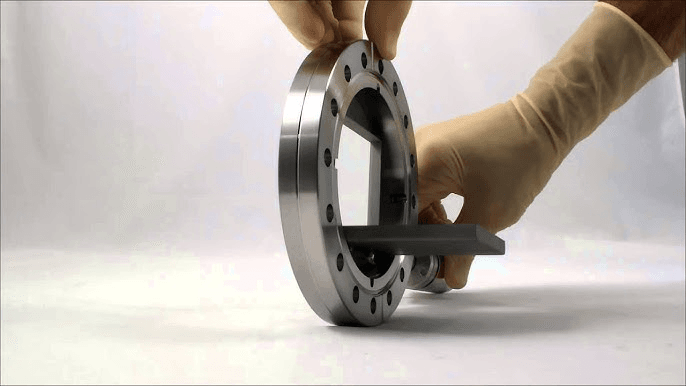

What Is a Viewport Shutter?
A viewport shutter is a mechanical or motorized device that covers or uncovers the viewport window as needed. It acts as a barrier between the vacuum chamber’s interior and the viewport lens. Shutters can be:
- Manually actuated via rotary feedthroughs
- Pneumatically actuated for remote control
- Motor-driven for automated integration into process sequences
The shutter is mounted directly in front of the viewport, often within the same flange assembly or attached externally. When closed, it shields the window from contamination. When open, it provides an unobstructed optical path.
Working Principle of a Viewport Shutter
The basic function of a viewport shutter is mechanically simple but must meet the rigorous requirements of UHV environments. The following elements define its working principle:
1. Sealing and Vacuum Compatibility
Viewport shutters are designed with vacuum-compatible materials such as stainless steel, aluminum, and ceramics. The actuation mechanism, seals, and fasteners are carefully chosen to ensure:
- No outgassing
- No virtual leaks
- Bake-out compatibility up to 150–250 °C
Bellows-sealed rotary or linear feedthroughs are used to actuate the shutter while maintaining vacuum isolation.

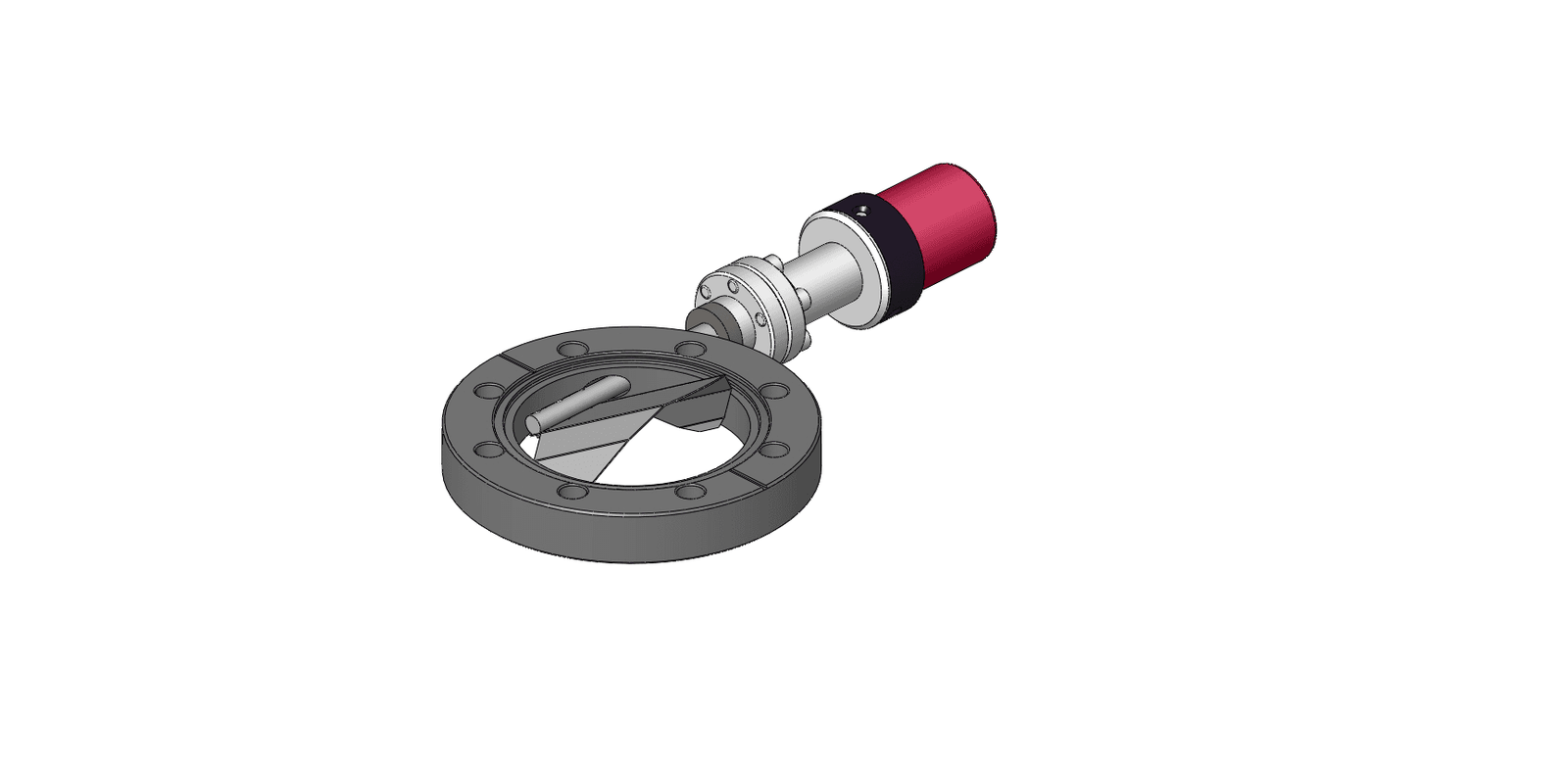

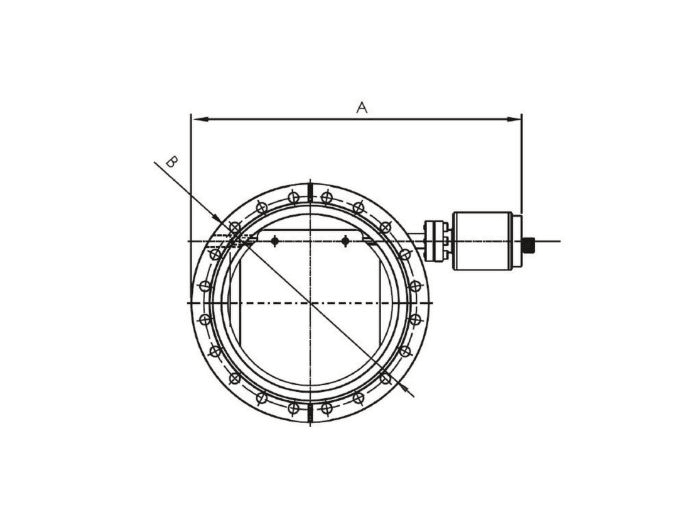

2. Movement Mechanism

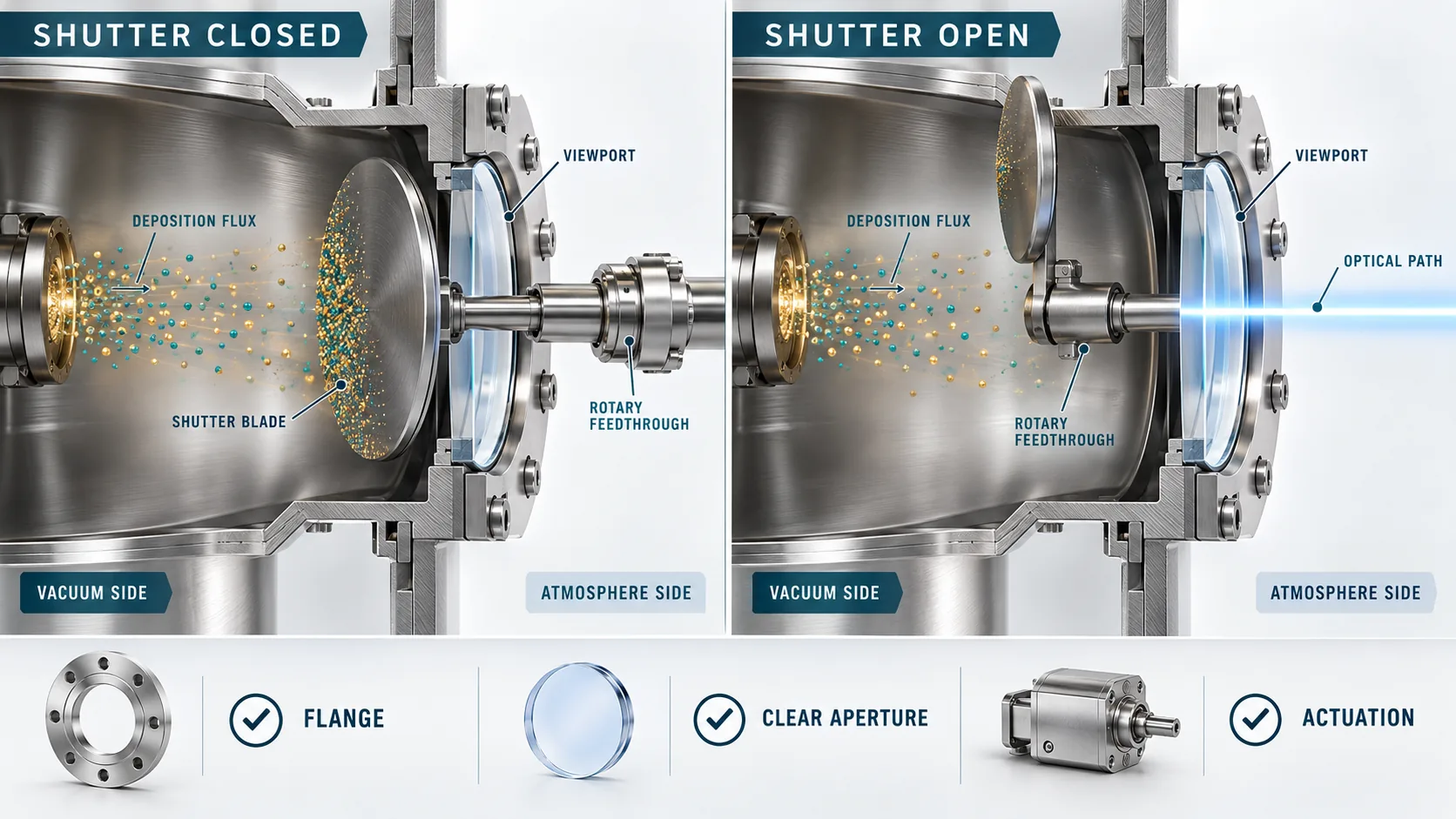

Shutters typically rotate or slide to reveal or conceal the viewport. Mechanisms include:
- Rotary shutters: These use a pivoting plate or disk that swings over the window. Common in compact systems.
- Linear shutters: A flat panel slides in or out horizontally or vertically across the viewport.
- Flag shutters: Small flaps that flip open or closed like a flag—ideal for compact UHV configurations.
In motorized systems, a stepper motor or pneumatic cylinder drives the motion. These are externally mounted, often using magnetic couplings or bellows.
3. Control System Integration
In modern deposition systems, viewport shutters are integrated into the control software to open only during monitoring or measurement. This prolongs viewport lifespan and enhances repeatability.
- In semiconductor fabs, shutters sync with process steps.
- In R&D, they can be manually toggled from control panels.
Materials Used in Viewport Shutter Construction
Since the shutter operates under UHV, careful attention must be paid to material selection. Common materials include:
- 304/316 Stainless Steel: Corrosion-resistant and UHV-compatible.
- Aluminum (6061-T6): Lightweight alternative for non-load-bearing shutters.
- Ceramics or PEEK: Used in insulators and low-outgassing mechanical components.
- Viton, Kalrez, or metal seals: Ensure vacuum integrity in moving joints.
These materials are chosen to tolerate:
- Bake-out cycles
- Radiation exposure
- Reactive process gases
Role of Viewport Shutters in UHV Systems
Viewport shutters are not just accessories—they are functional protectors. Here’s how they contribute to vacuum performance and system reliability:
1. Protection from Deposition
In thin film processes (sputtering, evaporation, CVD), atoms are ejected from a target and deposit on chamber surfaces. Without a shutter, viewports accumulate material, resulting in:
- Reduced optical transmission
- Distorted imaging or beam alignment
- Permanent damage due to uneven heating
A closed shutter blocks this flux and can be opened only during critical observation or alignment tasks.
2. Extension of Viewport Lifespan
High-quality UHV viewports can be costly. A shutter minimizes exposure to harmful processes, thereby:
- Preventing coating buildup
- Avoiding the need for frequent replacements
- Reducing cleaning frequency
This is especially important in production systems where downtime is expensive.
3. Thermal Protection
During high-temperature operations or plasma generation, direct radiation can heat the viewport glass. Shutters act as thermal shields, reflecting or absorbing excess energy.
4. Contamination Control
In load-lock and transfer systems, viewport shutters help reduce cross-contamination between process chambers and observation areas by:
- Sealing the optical path
- Blocking particulates or outgassing molecules
They also prevent backstreaming of pump oils in sensitive optics.
5. Optical Performance Assurance
In laser-based diagnostics, any film or contamination on the viewport can alter the laser’s focus, intensity, or wavelength. A clean, shutter-protected window ensures:
- Stable beam transmission
- Precise spectroscopy or interferometry
- Consistent process monitoring
Applications Across Industries
Viewport shutters are used in:
1. Semiconductor Manufacturing
- Wafer inspection and plasma etching require clean optical access
- Real-time monitoring with laser interferometry relies on pristine viewports
2. Thin Film Deposition
- Magnetron sputtering and thermal evaporation systems include viewport shutters to protect optics during coating cycles
3. Fusion and Plasma Research
- Optical diagnostics in fusion reactors and plasma chambers use motorized shutters for beam safety and instrumentation protection
4. Surface Science and UHV R&D
- Angle-resolved photoemission spectroscopy (ARPES)
- Scanning electron microscopy (SEM) under vacuum
Shutters help isolate delicate optics from sample processes and allow repeated bake-outs without degrading windows.
Integration and Customization Options
1. Mounting Flanges
Shutters are available in various standard flange sizes, including:
- CF (ConFlat) Flanges: Most common in UHV
- KF (QF) Flanges: Suitable for high-vacuum, lower-bake applications
- ISO Flanges: Large window applications
2. Automation Features
Advanced systems can include:
- Motorized actuators with position feedback
- Programmable logic controller (PLC) interfaces
- Safety interlocks to prevent laser exposure during maintenance
3. Custom Designs
Vendors like TFM (ThinFilmMaterials.com) offer custom viewport shutter solutions, including:
- Shutters with cooling jackets
- Radiation-hardened models
- Remote-controlled shutters for glovebox or hot-zone environments
Installation and Maintenance Best Practices
1. Bake-Out Compatibility
Ensure all shutter components can withstand bake-out temperatures up to 200–250 °C without degradation.
2. Periodic Cleaning
Remove shutter assemblies for inspection and clean:
- Surface-facing sides (exposed to deposition flux)
- Actuation shafts and bellows (check for wear or contamination)
Use IPA or vacuum-grade solvents and cleanroom lint-free wipes.
3. Alignment Checks
Verify that the shutter completely covers the viewport and that no edge exposure allows unwanted deposition.
Limitations and Challenges
Despite their utility, viewport shutters come with certain constraints:
- Space Requirements: Not all UHV systems have room to add mechanical shutters.
- Moving Parts in UHV: While rare, mechanical failure or outgassing from actuators can occur.
- Cost: High-precision, motorized shutters can add to system complexity and budget.
To mitigate these, modular designs and robust materials are recommended.
Future Developments
Research and industry trends are pushing viewport shutter development in new directions:
- Magnetically-coupled actuation to eliminate feedthrough wear
- Smart sensors to detect contamination and trigger shutter closure automatically
- Nano-coated shutter surfaces for self-cleaning behavior
- AI-based control integrated with real-time monitoring software for dynamic shuttering during specific process events
As UHV applications become more advanced and sensitive, intelligent protection strategies will become increasingly important.
Conclusion
Viewport shutters, though often overlooked, are vital components in the preservation and performance of UHV systems. From shielding against deposition to ensuring optical clarity, they serve as guardians of the most sensitive window into vacuum environments. Understanding their mechanisms and strategic use allows researchers and engineers to extend equipment life, improve process stability, and ensure accurate measurements.
For institutions or companies operating high-value vacuum systems, investing in reliable and customizable viewport shutters is not merely an upgrade—it’s a safeguard for both performance and productivity.
