Yttria-stabilized zirconia (YSZ) is a highly regarded ceramic material that has gained prominence in various scientific and industrial applications. It is formed by doping zirconium dioxide (ZrO2) with yttrium oxide (Y2O3), which stabilizes its high-temperature cubic or tetragonal phase at room temperature. This stabilization leads to exceptional mechanical, thermal, and ionic conductive properties, making YSZ an indispensable material in several high-performance domains. Among its many formats, YSZ substrates have found widespread use in electronics, optics, energy devices, and thin-film research. This article provides a comprehensive examination of YSZ substrates, focusing on their structure, physical and chemical properties, production techniques, applications, and current market trends.
1. Crystal Structure and Stabilization Mechanism
Pure zirconia naturally exists in three crystalline forms: monoclinic, tetragonal, and cubic. At room temperature, the stable form is monoclinic, which transforms into tetragonal at about 1170 °C and into cubic at 2370 °C. These transformations are accompanied by significant volume changes, which cause cracking and limit the use of pure ZrO2 in structural applications.

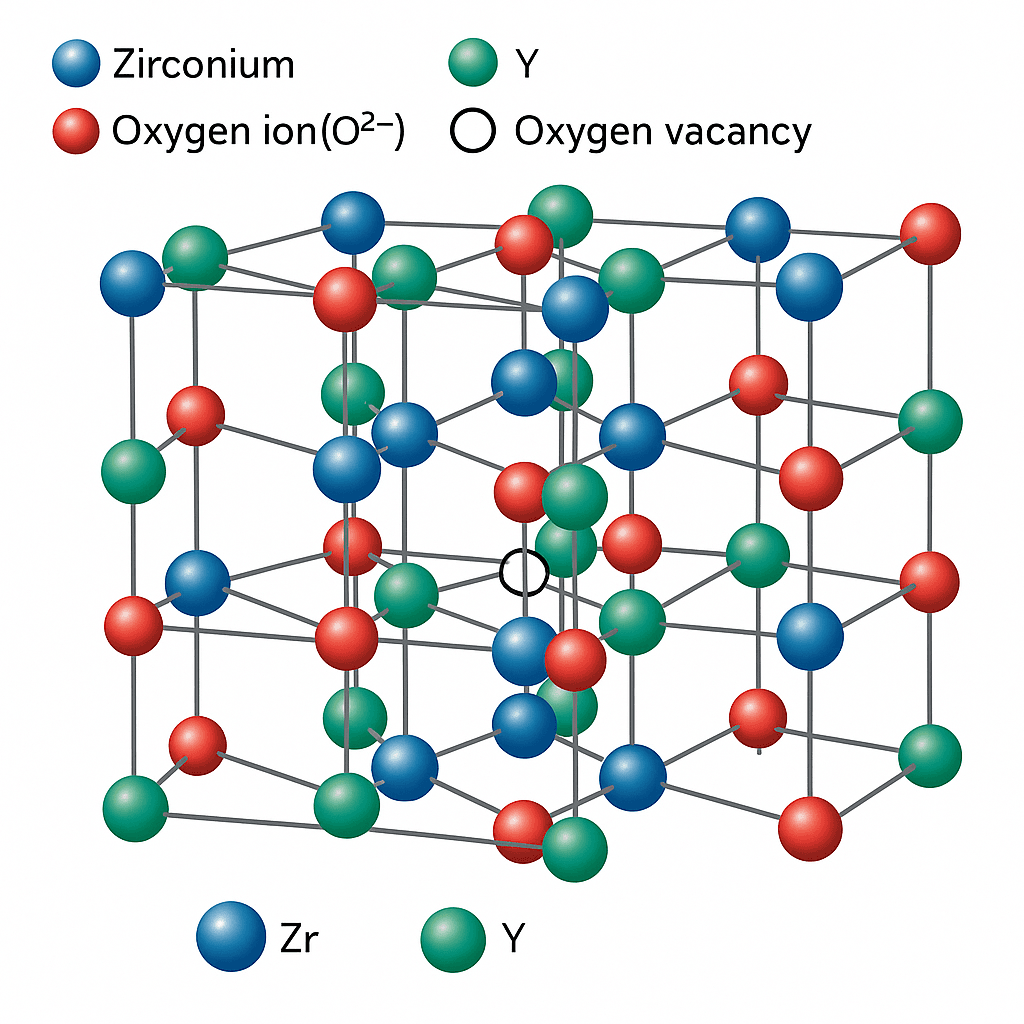

YSZ is engineered by adding 3-8 mol% yttria (Y2O3) to zirconia. This dopant stabilizes the cubic or tetragonal phase by introducing oxygen vacancies into the crystal lattice, which enhances ionic conductivity and structural stability. The amount of yttria used determines the dominant phase. 3YSZ, 5YSZ, and 8YSZ are common compositions, where the numeral represents the molar percentage of yttria.
2. Physical and Chemical Properties
YSZ substrates exhibit a range of desirable characteristics:
- High Ionic Conductivity: Especially in 8YSZ, oxygen ions can move through the lattice efficiently, making it ideal for solid oxide fuel cells (SOFCs).
- High Melting Point: Around 2700 °C, suitable for high-temperature environments.
- Thermal Stability: Excellent resistance to thermal shock and phase degradation.
- Mechanical Strength: Good fracture toughness and hardness.
- Chemical Inertness: Resistance to most acids and bases.
- Optical Properties: Transparency in infrared (IR) and good reflectivity in UV-Vis ranges (depending on thickness and surface finish).
These properties make YSZ substrates highly suitable for both research and industrial-scale applications.
3. Manufacturing Methods
YSZ substrates are fabricated through several precision ceramic processing methods:
- Powder Processing: High-purity zirconia and yttria powders are mixed, milled, and calcined to form homogeneous composite powder.
- Green Body Formation: The mixed powder is shaped using tape casting, uniaxial pressing, or isostatic pressing.
- Sintering: The green body is sintered at temperatures ranging from 1400 to 1600 °C to achieve full densification.
- Machining and Polishing: Post-sintering, the substrate is machined and polished to desired dimensions, flatness, and surface roughness. Double-side polished substrates are common for optical and thin-film uses.
- Quality Control: Dimensional accuracy, crystallographic orientation, and impurity levels are stringently monitored.
Advanced techniques such as hot isostatic pressing (HIP) can further improve density and eliminate residual porosity.
4. Applications of YSZ Substrates
YSZ substrates are integral to a variety of high-technology fields:
a. Solid Oxide Fuel Cells (SOFCs)
- YSZ is the standard electrolyte material due to its oxygen ion conductivity.
- Substrates serve as structural supports or sintered membranes.
b. Oxygen Sensors
- Widely used in automotive and industrial oxygen sensors.
- YSZ facilitates oxygen ion transfer for accurate oxygen partial pressure detection.
c. Thin Film Deposition
- YSZ substrates provide lattice-matched platforms for epitaxial growth of oxide thin films like high-temperature superconductors (e.g., YBCO), ferroelectrics, and multiferroics.
- Surface quality and crystallographic orientation are crucial.
d. Thermal Barrier Coatings (TBCs)
- Used as a model substrate for developing coatings that protect turbine components in jet engines and gas turbines.
e. Optical and Photonic Devices
- Due to its IR transparency and thermal stability, YSZ is explored for IR optics and waveguide applications.
f. Catalysis and Sensor Platforms
- In heterogeneous catalysis, YSZ can act as a support material.
- Its chemical stability and surface properties aid sensor development.
5. Comparison with Other Substrate Materials
YSZ competes with various ceramic and crystalline substrates depending on the application:
| Property | YSZ | Sapphire (Al2O3) | MgO | SrTiO3 | SiC |
|---|---|---|---|---|---|
| Thermal Stability | Excellent | Very High | Moderate | Good | Excellent |
| Ionic Conductivity | High | Low | Low | Low | Low |
| Chemical Resistance | High | High | Moderate | Moderate | High |
| Lattice Matching | Good for oxide films | Excellent for Al-based | Varies | Excellent for perovskites | Moderate |
| Cost | Moderate to High | High | Low | High | High |
YSZ offers a unique blend of ionic conductivity and thermal stability that many other substrates lack.
6. Recent Developments and Innovations
- Nanostructured YSZ: Enhancing conductivity and mechanical properties.
- Doped YSZ Systems: Co-doping with rare earth elements (e.g., scandium) to further increase ionic mobility.
- Thin and Flexible YSZ SubstratesYSZ Substrates (Yttria-stabilized Zirconia): For integration into micro-devices and MEMS.
- 3D Printed YSZ Ceramics: Emerging techniques for custom-shaped substrates and components.
7. Market Trends and Industrial Outlook
The global demand for YSZ substrates is driven by:
- Growth in clean energy technologies (SOFCs, hydrogen production).
- Expanding R&D in advanced ceramics and functional oxides.
- Increasing adoption in thin-film electronics and optics.
Key suppliers include companies in Japan, Germany, the U.S., and China. Prices vary based on size, crystallographic orientation (e.g., (100), (110), (111)), surface finish (single/double side polished), and thickness.
8. Challenges and Future Directions
- Cost Reduction: Finding scalable, low-cost production techniques.
- Integration: Making YSZ compatible with CMOS and other semiconductor technologies.
- Sustainability: Recycling and processing strategies to reduce waste.
Researchers continue to explore new doping strategies, nanostructuring, and composite approaches to enhance YSZ properties while maintaining its compatibility with emerging technologies.
9. Frequently Asked Questions (FAQs) about YSZ Substrates
Q1: What is the typical composition of YSZ substrates? A1: The most common compositions are 3YSZ, 5YSZ, and 8YSZ, referring to 3%, 5%, and 8% mol yttria-stabilized zirconia, respectively.
Q2: Why are YSZ substrates used in SOFCs? A2: Due to their high oxygen ion conductivity and thermal stability, YSZ substrates serve as ideal electrolytes and support structures in solid oxide fuel cells.
Q3: Can YSZ substrates be used in thin film deposition? A3: Yes. YSZ offers excellent lattice matching for epitaxial growth of various oxide films, including superconductors and multiferroics.
Q4: What crystallographic orientations are available for YSZ substrates? A4: Common orientations include (100), (110), and (111), depending on the intended thin-film application.
Q5: Are YSZ substrates chemically inert? A5: YSZ is highly resistant to most acids and bases, making it chemically stable under harsh conditions.
Q6: How are YSZ substrates typically finished? A6: They are usually single or double-side polished to meet specific optical or thin-film deposition requirements.
Q7: Is there a difference between YSZ and pure zirconia? A7: Yes. Pure zirconia undergoes phase transitions that cause cracking, while YSZ is stabilized in the cubic/tetragonal phase, providing better durability and ionic conductivity.
Q8: Can YSZ substrates withstand high temperatures? A8: Yes, they have a melting point around 2700 °C and excellent thermal shock resistance.
Q9: What are some emerging trends in YSZ substrate development? A9: Trends include nanostructuring, co-doping strategies, flexible substrate fabrication, and 3D printing.
Q10: How do YSZ substrates compare to sapphire or MgO? A10: YSZ has better ionic conductivity and thermal shock resistance than sapphire or MgO, though sapphire may offer superior optical clarity for certain IR applications.
Conclusion
YSZ substrates, due to their unparalleled combination of ionic conductivity, thermal stability, and chemical inertness, are a cornerstone in the advancement of solid-state devices, energy systems, and thin-film technologies. As the push toward cleaner energy and smarter electronics continues, YSZ will remain at the forefront of
material innovation. Ongoing research and industrial optimization promise to expand its applicability, making YSZ a pivotal material in shaping the future of advanced ceramics and functional substrates.
