90° KF (QF) HV Miter Elbows

90° KF (QF) HV Miter Elbows

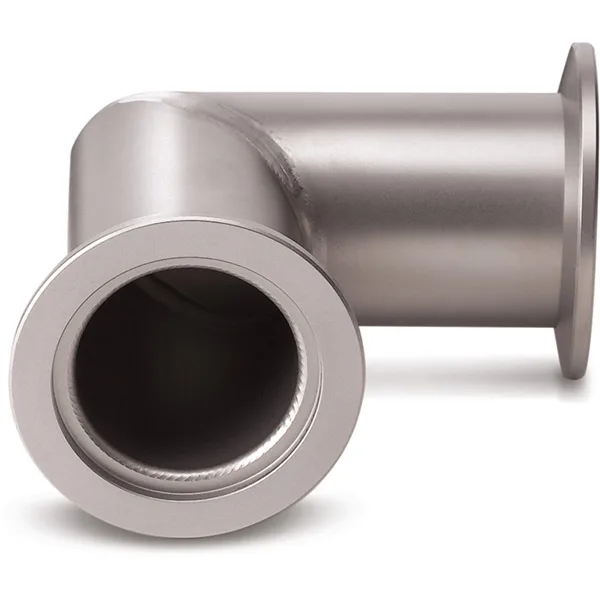

90° KF (QF) HV Miter Elbows are precision-engineered components designed for high-vacuum (HV) and ultra-high-vacuum (UHV) systems. These elbows facilitate a sharp 90-degree directional change in vacuum piping while maintaining optimal gas flow and minimal pressure drop.

Key Features

  • Material: Manufactured from high-purity stainless steel (304L or 316L) to ensure durability, corrosion resistance, and minimal outgassing.

  • Mitered 90° Bend: Offers a compact, space-efficient design for systems requiring sharp directional changes.

  • KF (QF) Flange Connection: Compatible with ISO-KF (QF) vacuum fittings, enabling quick and easy assembly without welding.

  • Leak-Tight & High-Precision Fabrication: Ensures airtight performance for demanding HV/UHV applications.

  • Custom Sizes Available: Various diameters and wall thicknesses to fit different vacuum system configurations.

Applications

  • Semiconductor Manufacturing – Supports thin film deposition, ion implantation, and plasma processing.

  • Vacuum Coating & Sputtering Systems – Ideal for optical coatings, solar panel production, and decorative coatings.

  • Research & Laboratory Equipment – Used in mass spectrometers, particle accelerators, and high-energy physics applications.

  • Industrial High-Vacuum Systems – Essential for aerospace, pharmaceutical, and chemical processing industries.

Why Choose TFM’s 90° KF (QF) HV Miter Elbows?

  • High-precision machining for leak-free performance

  • Constructed from premium stainless steel for long-term durability

  • Optimized for high-vacuum and ultra-high-vacuum environments

  • Available in custom configurations upon request

Ordering Table

Flange Size/OD Type Flange Material Drawing Nominal Tube OD Wall Thickness Part Number
KF16 (1.18" OD) Elbow, 90 Degree Mitered 6061-T6 Aluminum Tooltip 7/8 0.144 QF16-075-EAL
KF16 (1.18" OD) Elbow, 90 Degree Mitered 304L SS Tooltip 3/4 0.065 QF16-075E90M
KF25 (1.57" OD) Elbow, 90 Degree Mitered 6061-T6 Aluminum Tooltip 1.28 0.168 QF25-100-EAL
KF25 (1.57" OD) Elbow, 90 Degree Mitered 304L SS Tooltip 1 0.065 QF25-100E90M
KF40 (2.16" OD) Elbow, 90 Degree Mitered 6061-T6 Aluminum Tooltip 1.83 0.108 QF40-150-EAL
KF40 (2.16" OD) Elbow, 90 Degree Mitered 304L SS Tooltip 1-1/2 0.065 QF40-150E90M
KF50 (2.95" OD) Elbow, 90 Degree Mitered 304L SS Tooltip 2 0.065 QF50-200E90M

Accessories Table

Description For Per Package Part Number
Cast Clamps (SS) KF10, KF16 Flanges 1 QF16-075-CS
Cast Clamps (SS) KF25 Flanges 1 QF25-100-CS
Cast Clamps (SS) KF40 Flanges 1 QF40-150-CS
Cast Clamps (SS) KF50 Flanges 1 QF50-200-CS
Cast Clamps (Aluminum) KF10, KF16 Flanges 1 QF16-075-C
Cast Clamps (Aluminum) KF25 Flanges 1 QF25-100-C
Cast Clamps (Aluminum) KF40 Flanges 1 QF40-150-C
Cast Clamps (Aluminum) KF50 Flanges 1 QF50-200-C
Lever Clamps (Aluminum) KF10, KF16 Flanges 1 QF16-075-CHA
Lever Clamps (Aluminum) KF25 Flanges 1 QF25-100-CHA
Lever Clamps (Aluminum) KF40 Flanges 1 QF40-150-CHA
Centering Ring (SS with Fluorocarbon O-Ring) KF10 Flanges 1 QF10-050-SRV
Centering Ring (SS with Fluorocarbon O-Ring) KF16 Flanges 1 QF16-075-SRV
Centering Ring (SS with Fluorocarbon O-Ring) KF25 Flanges 1 QF25-100-SRV
Centering Ring (SS with Fluorocarbon O-Ring) KF40 Flanges 1 QF40-150-SRV
Centering Ring (SS with Fluorocarbon O-Ring) KF50 Flanges 1 QF50-200-SRV
