Product Overview

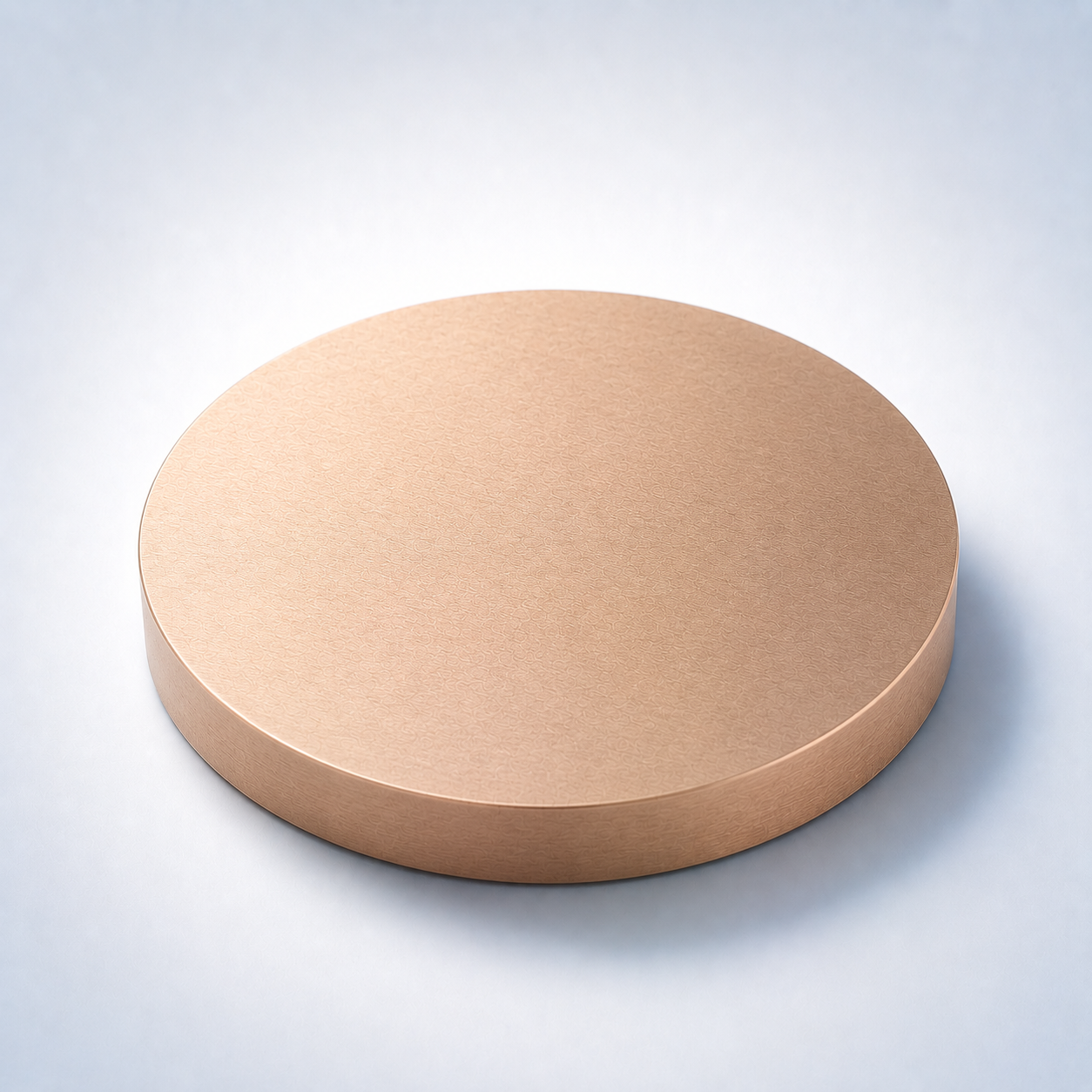

Beryllium Copper Sputtering Target (BeCu) is a composition-specific sputtering target for thin-film deposition and PVD process development. The practical specification normally includes chemistry, purity, dimensions, density, target configuration, and any bonding or backing requirement needed by the sputtering cathode.
Material and Deposition Characteristics
Power mode and process conditions should be selected according to the target conductivity, thermal behavior, and the requirements of the cathode system. For less common materials, conservative initial power density and film-composition verification are good practice.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Ensures consistent film composition and reduces contamination |
| Composition | Cu–Be alloy (typically 0.5–2.0% Be) | Determines mechanical and electrical properties |
| Density | ≥ 99% theoretical density | Provides stable sputtering performance |
| Diameter | 25 – 300 mm (custom) | Compatible with various sputtering systems |
| Thickness | 3 – 6 mm | Influences sputtering lifetime and deposition rate |
| Bonding | Copper backing plate optional | Improves heat dissipation and mechanical stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Beryllium Copper (BeCu) | High strength with excellent electrical conductivity | Electronics, connectors, wear-resistant coatings |
| Copper (Cu) | Very high electrical conductivity | General conductive coatings |
| Copper Chromium (Cu/Cr) | Improved hardness and wear resistance | Electrical contacts and vacuum components |
| Nickel Copper (Ni/Cu) | Enhanced corrosion resistance | Decorative and protective coatings |
| Question | Answer |
|---|---|
| Can the Beryllium Copper Sputtering Target be customized? | Yes, target dimensions, alloy composition, purity, and bonding structures can be customized according to system requirements. |
| Is beryllium copper safe to use in sputtering systems? | When handled according to industrial safety standards and used within closed vacuum systems, BeCu targets can be safely used in deposition equipment. |
| Do BeCu sputtering targets require a backing plate? | For high-power sputtering processes, copper backing plates are recommended to improve thermal conductivity and prevent thermal cracking. |
| Which sputtering methods are compatible with BeCu targets? | Beryllium Copper targets are compatible with RF magnetron sputtering, DC sputtering, and other PVD methods. |
| What industries commonly use BeCu sputtering targets? | Semiconductor manufacturing, electronics production, aerospace engineering, and materials research laboratories. |
Typical Thin-Film Applications
- Thin-film research and materials-development projects requiring a composition-specific sputtering source
- Semiconductor, optical, energy, electronic, or laboratory coatings depending on the material system
- Custom R&D work where target composition, purity, and geometry need to be specified together
Target Configuration and Ordering Considerations
For quotation and manufacturability review, provide target size, thickness, purity or alloy composition, quantity, and the sputtering gun or cathode model if known. If a bonded assembly is required, include backing-plate material, bonding preference, and any dimensional tolerances, surface-finish needs, or inspection-document requirements. TFM can also review customer drawings or old-target samples for replacement builds.
Frequently Asked Questions
What is the main reason to use a Beryllium Copper sputtering target?
It provides a composition-specific source for thin-film deposition when the target material itself is important to the desired film chemistry or process.
How should the sputtering mode for Beryllium Copper be selected?
The power mode should be chosen according to target conductivity, thermal behavior, and equipment capability. Less-conductive materials are commonly evaluated with RF power.
Why are density and microstructure important for Beryllium Copper targets?
These factors can influence erosion stability, thermal behavior, particle generation, and the risk of cracking or local hot spots.
Can Beryllium Copper be supplied with a backing plate?
Yes. If the material is brittle or the cathode requires it, a bonded configuration can be reviewed according to target size, thickness, cooling, and power.
Does target composition always equal film composition?
No. Film chemistry may differ because of sputtering yields, process conditions, substrate temperature, re-sputtering, and chamber history. Film verification is recommended when composition matters.
What should I provide to request a quotation for Beryllium Copper?
Please provide the composition, purity, dimensions, quantity, target configuration, cathode details, and any drawing or inspection requirements.
