Product Overview

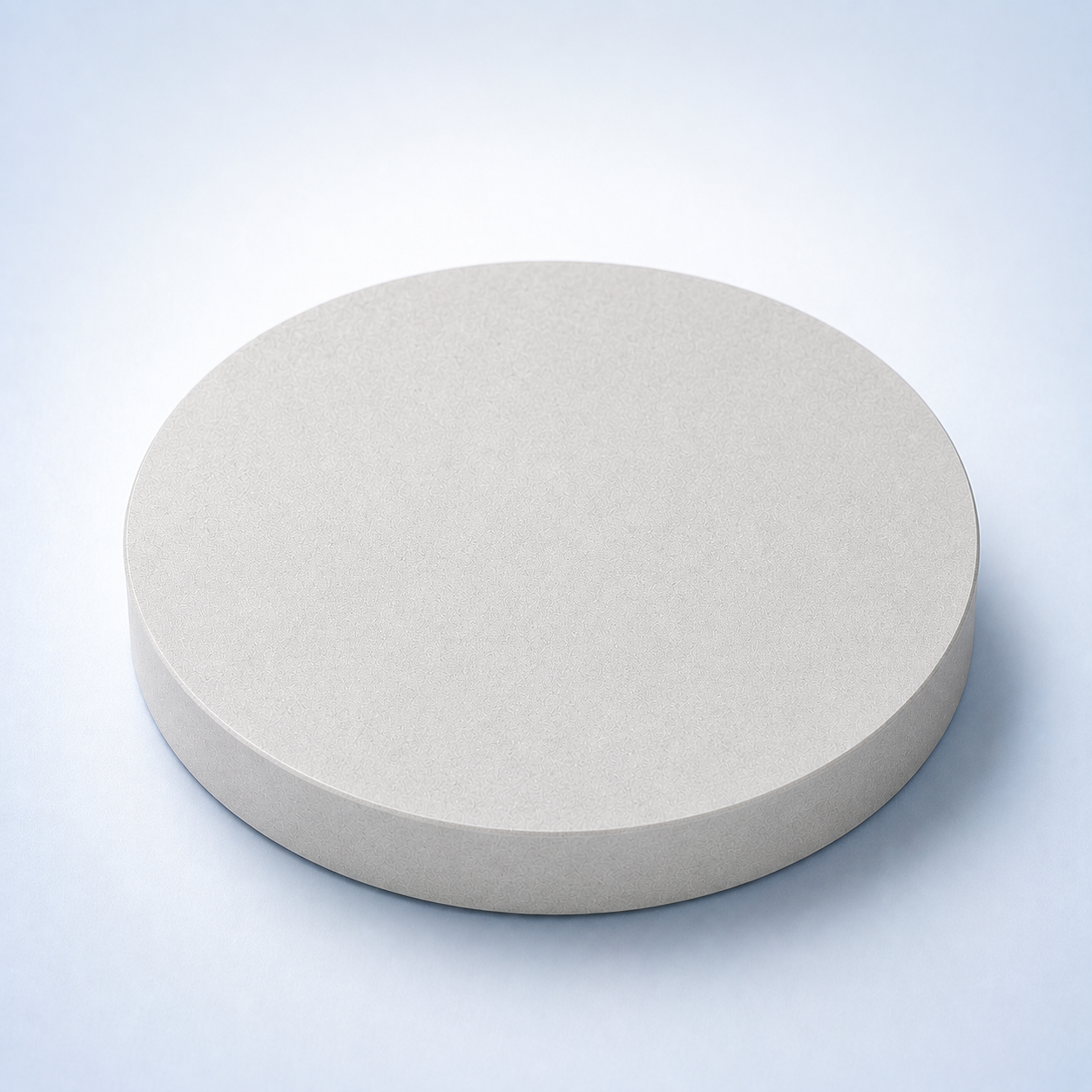

Gallium Oxide-Magnesium Oxide Sputtering Target (Ga2O3-MgO) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | (Ga₂O₃)₁₋ₓ(MgO)ₓ | Defines composition and performance |
| Purity | 99.9% – 99.99% | Ensures low contamination |
| Density | ≥ 95% theoretical | Improves film uniformity and deposition rate |
| Diameter | 25 – 300 mm (custom) | Compatible with various sputtering systems |
| Thickness | 3 – 10 mm | Balances sputtering stability and target lifespan |
| Backing Plate | Copper / Titanium | Enhances heat dissipation and bonding reliability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Ga₂O₃–MgO | High thermal stability & tunable conductivity | Power & optoelectronic films |
| Ga₂O₃ (Gallium Oxide) | Ultra-wide bandgap & transparency | UV devices, semiconductors |
| MgO (Magnesium Oxide) | Excellent insulation & hardness | Protective coatings |
| ZnO–MgO | Tunable optical bandgap | Transparent semiconductors |
| Question | Answer |
|---|---|
| Can Ga₂O₃–MgO targets be customized? | Yes, Ga₂O₃:MgO ratios, sizes, and bonding options can be customized. |
| What bonding options are available? | Copper or titanium backing plates are common. |
| Is the target suitable for RF sputtering? | Yes, ideal for both RF and DC magnetron sputtering systems. |
| How are the targets packaged? | Vacuum-sealed with desiccant, foam-cushioned, and shipped in wooden crates. |
| Which industries use this material most? | Semiconductor, optoelectronic, and power device industries. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Gallium Oxide-Magnesium Oxide better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Gallium Oxide-Magnesium Oxide target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Gallium Oxide-Magnesium Oxide target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as Ga2O3-MgO?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Gallium Oxide-Magnesium Oxide target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Gallium Oxide-Magnesium Oxide?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
