Product Overview

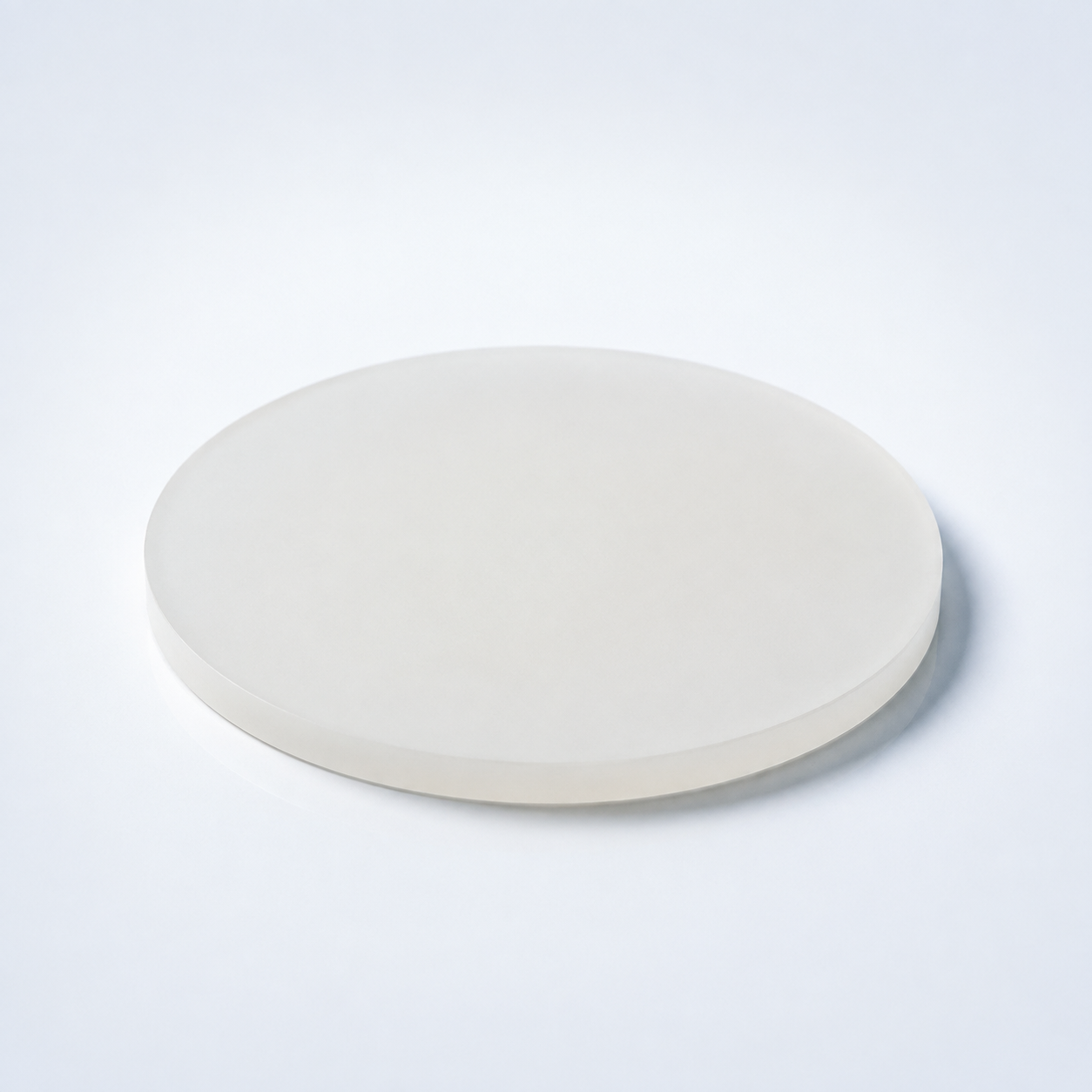

Selenium Oxide Sputtering Targets (SeO2) (SeO2) is a ceramic sputtering target used to deposit composition-specific oxide thin films. Compared with metallic targets, oxide targets are typically more sensitive to density, porosity, brittleness, thermal shock, and bonding design. In practice, target microstructure, thickness, cooling conditions, and the chosen sputtering mode can all affect arc stability, particle generation, and deposited-film performance.
Material and Deposition Characteristics
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets, while sufficiently conductive formulations may allow alternative power modes in some systems. Target density and microstructural uniformity matter because pores, cracks, and local inhomogeneities can contribute to unstable plasma, particles, or target damage. For brittle ceramics, bonded assemblies and gradual power ramping are often worth evaluating.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Purity | 99.9% – 99.99% | Higher purity improves film consistency and optical quality |
| Density | ≥95% theoretical | Ensures stable sputtering performance |
| Diameter | 25 – 300 mm (custom) | Compatible with various sputtering cathodes |
| Thickness | 3 – 6 mm | Influences sputtering rate and target lifetime |
| Bonding | Copper backing plate (optional) | Improves heat transfer and structural stability |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Selenium Oxide (SeO₂) | Unique optical and electronic properties | Optical coatings and semiconductor research |
| Selenium (Se) | Semiconductor properties | Photoconductive devices |
| Tellurium Oxide (TeO₂) | Strong optical and acousto-optic characteristics | Optical modulators and photonic devices |
| Question | Answer |
|---|---|
| Can SeO₂ sputtering targets be customized? | Yes, diameter, thickness, purity, and backing plate bonding options can be customized according to sputtering system requirements. |
| Which sputtering method is recommended for SeO₂ targets? | RF magnetron sputtering is typically used because selenium oxide is an insulating ceramic material. |
| Are bonded targets available? | Yes, SeO₂ targets can be indium-bonded or elastomer-bonded to copper backing plates for improved thermal management. |
| What substrates are compatible with SeO₂ thin films? | Silicon wafers, glass, quartz, sapphire, and oxide substrates are commonly used. |
| Which industries commonly use SeO₂ sputtering targets? | Semiconductor research laboratories, photonics development centers, sensor technology research, and advanced materials science institutions. |
Typical Thin-Film Applications
- Dielectric, insulating, optical, magnetic, protective, or functional ceramic thin films
- Semiconductor, sensor, photonic, and multilayer coating research
- Applications where oxide composition, density, and process stability affect film performance
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
Is Selenium Oxides (SeO2) better suited to RF or DC sputtering?
RF magnetron sputtering is commonly considered for insulating or semiconducting oxide targets. If a specific formulation is sufficiently conductive, other modes may also be possible, but the equipment and target properties should be confirmed.
Why is density important for a Selenium Oxides (SeO2) target?
Density and microstructural uniformity affect erosion stability, thermal behavior, and particle risk. Pores, cracks, or local density variations can contribute to unstable sputtering and target damage.
Should a Selenium Oxides (SeO2) target be bonded to a backing plate?
Bonding is often useful for brittle oxide targets because it can improve mechanical support and heat transfer. The backing material and bonding method should be chosen according to target size, thickness, and operating conditions.
Will the deposited film always have the same composition as SeO2?
Not always. Film composition can be affected by preferential sputtering, reactive gas, substrate temperature, re-sputtering, and chamber conditions. Composition-sensitive films should be verified after deposition.
How should power be ramped on a brittle Selenium Oxides (SeO2) target?
A conservative power ramp and stable cooling are generally advisable. The exact operating procedure should follow the target size, bonding condition, cathode design, and supplier recommendations rather than a universal wattage.
What information should I provide when ordering Selenium Oxides (SeO2)?
Provide formula or composition, purity, dimensions, quantity, backing and bonding requirements, cathode model or drawing, and any density, tolerance, or inspection requirements.
