Product Overview

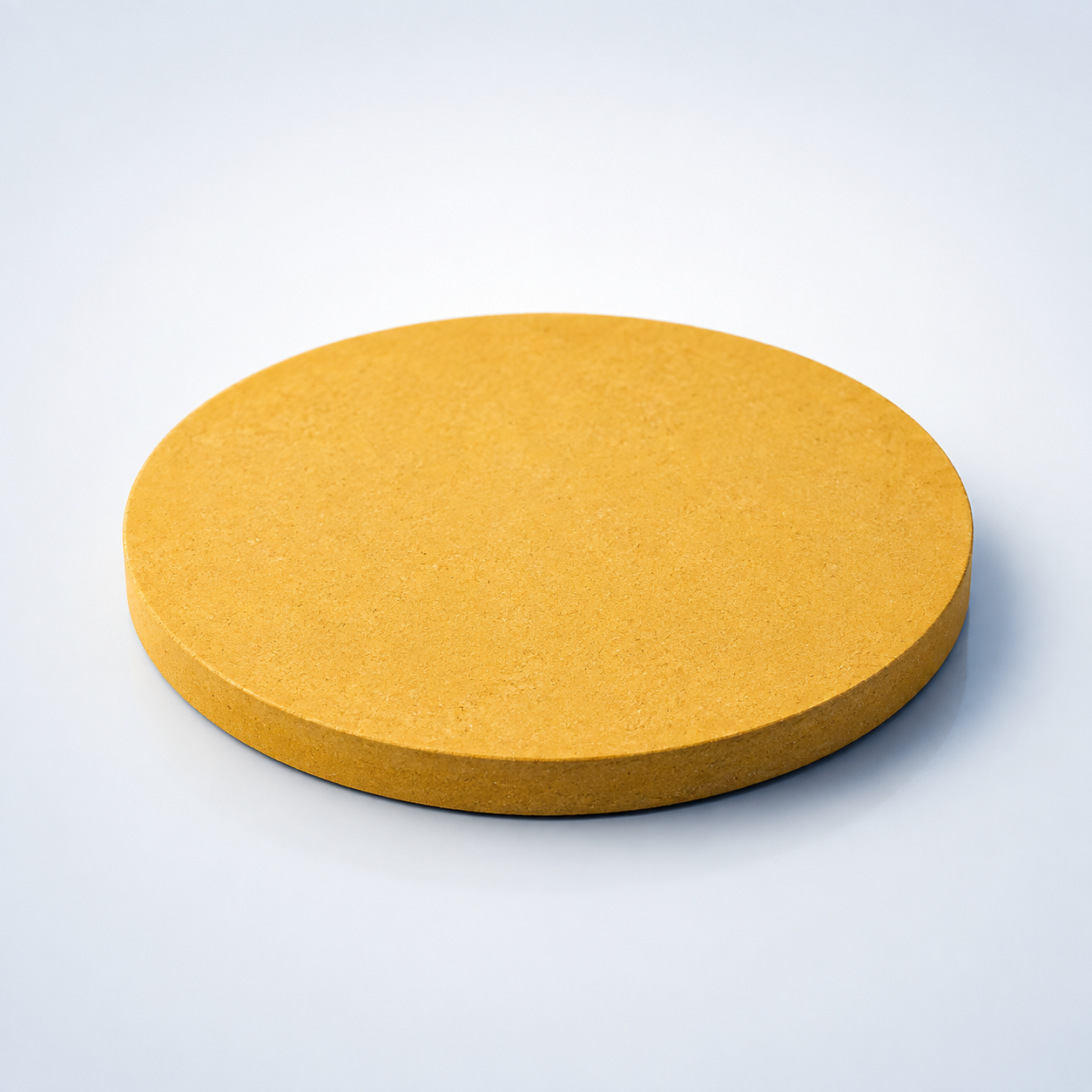

Zinc Indium Sulfide Sputtering Target (ZnIn2S4) is a chalcogenide sputtering target intended for composition-sensitive thin-film deposition. For sulfur-, selenium-, or tellurium-containing materials, the target chemistry is only the starting point: sputtering yield differences, substrate temperature, gas pressure, and volatile-component loss can shift the deposited-film composition relative to the nominal target composition.
Material and Deposition Characteristics
These targets are commonly treated as mechanically brittle and composition-sensitive sputtering materials. RF sputtering is often considered when target conductivity is limited. Power density, substrate temperature, and working pressure should be controlled conservatively, and the deposited film composition should be verified when precise sulfur, selenium, or tellurium stoichiometry is required.
Technical Data
| Parameter | Typical Value / Range | Importance |
|---|---|---|
| Chemical Formula | ZnIn₂S₄ | Defines stoichiometry and film properties |
| Purity | 99.9% – 99.99% | Reduces impurity-induced defects |
| Diameter | 25 – 300 mm (custom) | Fits various sputtering cathodes |
| Thickness | 3 – 6 mm (custom) | Influences sputtering rate and target life |
| Density | ≥ 95% theoretical | Ensures stable sputtering performance |
| Bonding | Unbonded / Cu or Ti backing | Improves heat dissipation and stability |
| Sputtering Method | RF Magnetron Sputtering | Suitable for compound sulfide materials |
| Material | Key Advantage | Typical Application |
|---|---|---|
| Zinc Indium Sulfide (ZnIn₂S₄) | Tunable bandgap and good stability | Optoelectronics, energy films |
| Zinc Sulfide (ZnS) | Wide bandgap, high transparency | Optical coatings |
| Indium Sulfide (In₂S₃) | Favorable semiconductor properties | Solar cells, detectors |
| Question | Answer |
|---|---|
| Can ZnIn₂S₄ targets be customized? | Yes, diameter, thickness, purity, and bonding options can be tailored. |
| Which sputtering technique is recommended? | RF sputtering is most commonly used for ZnIn₂S₄. |
| Are the targets suitable for research use? | Yes, they are widely used in laboratory and pilot-scale R&D. |
| How are the targets packaged? | Vacuum-sealed with protective foam and export-grade cartons or crates. |
| Can stoichiometry be tightly controlled? | Yes, strict compositional control is applied during powder synthesis and target fabrication. |
Typical Thin-Film Applications
- Chalcogenide thin films for optical, infrared, electronic, thermoelectric, and phase-change research
- Compound semiconductor layers and advanced-material thin-film studies
- Projects where composition retention and controlled sputtering of brittle materials are important
Target Configuration and Ordering Considerations
When requesting a quotation, provide target diameter or rectangular dimensions, thickness, purity or composition, required quantity, and whether a backing plate or bonded assembly is needed. For brittle ceramic or compound targets, it is useful to specify the cathode model, backing-plate material, preferred bonding method, operating power if known, and any density, tolerance, or inspection-document requirements. TFM can review drawings, old-target photos, and application details when custom dimensions are required.
Frequently Asked Questions
What sputtering mode is commonly used for Zinc Indium Sulfide?
RF magnetron sputtering is often considered when the target conductivity is limited or when more conservative operation is preferred for brittle, composition-sensitive compounds.
Can Zinc Indium Sulfide films lose sulfur, selenium, or tellurium during deposition?
Yes. Composition drift can occur because of preferential sputtering, substrate heating, re-sputtering, and volatile-component loss. Film composition should be checked when stoichiometry is important.
Why is bonding important for a Zinc Indium Sulfide target?
Many chalcogenide targets are brittle and have modest thermal conductivity. A suitable backing plate and bonding layer can improve mechanical support and heat transfer during sputtering.
Does the target composition guarantee film stoichiometry for ZnIn2S4?
No. The target composition is the starting source composition, but the deposited film can still shift because of process variables. Film analysis should be used to confirm the final stoichiometry.
What process variables should be monitored when sputtering Zinc Indium Sulfide?
Useful variables include power density, working pressure, substrate temperature, cooling, target conditioning, and deposited-film composition. If reactive gas is used, gas ratio should also be controlled carefully.
What should I send TFM for a custom Zinc Indium Sulfide target?
Please provide composition or formula, purity, dimensions, quantity, backing or bonding details, cathode model, and any film-composition or inspection requirements relevant to your project.
