In the field of thin film deposition, especially in physical vapor deposition (PVD) processes like sputtering, the choice of target material shape plays a pivotal role in determining efficiency, cost-effectiveness, and film quality. Two predominant target types—rotatable sputtering targets and planar sputtering targets—have become central to modern vacuum coating technologies. Understanding their differences, applications, and performance characteristics is essential for engineers, manufacturers, and researchers alike.
This article offers a comprehensive comparison between rotatable and planar sputtering targets, revealing their advantages, limitations, and ideal use cases in various industrial contexts such as semiconductors, photovoltaics, optical coatings, and display technologies.
Understanding the Basics of Sputtering Targets
Before diving into a direct comparison, let’s clarify what sputtering targets are. In sputtering deposition, a target is the source material that gets bombarded by ions (typically argon ions in magnetron sputtering), ejecting atoms from the surface to form thin films on a substrate.
Sputtering targets come in different shapes and configurations, the most common being:
- Planar targets: Flat, disc- or rectangular-shaped targets, typically made of metals, alloys, ceramics, or compounds.
- Rotatable targets: Cylindrical tubes that rotate during deposition, ensuring uniform erosion and extended usage.
Structural Differences and Design

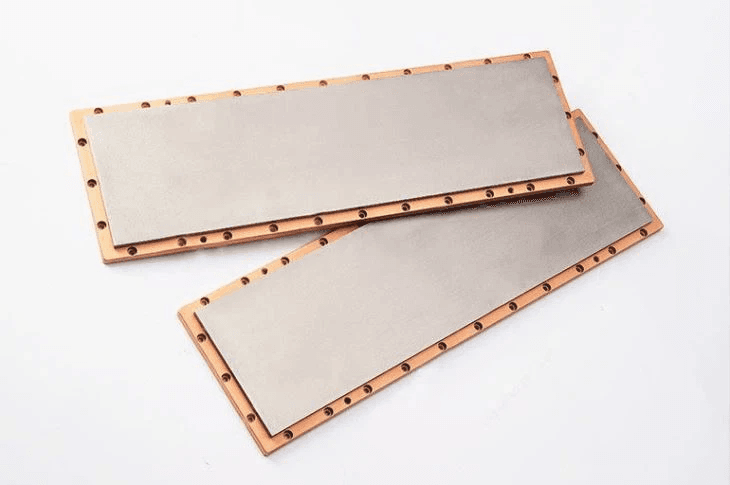

Planar Sputtering Targets
Planar targets are the traditional design used since the early development of sputtering techniques. They are generally easier to fabricate and integrate into existing systems. Their simple geometry allows for:
- Straightforward installation
- Low initial cost
- Compatibility with older systems
However, one key drawback is non-uniform target erosion over time. “Race-track” erosion patterns tend to develop, leading to uneven material usage and the need for frequent replacement.

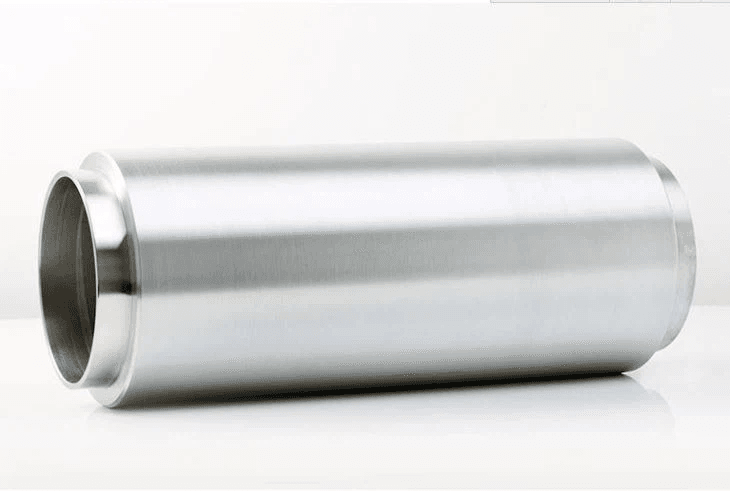

Rotatable Sputtering Targets
Rotatable sputtering targets are designed as hollow cylindrical tubes that rotate during operation. The rotation equalizes erosion across the entire surface, enabling:
- Higher material utilization (up to 80–90%)
- Longer target life
- Reduced downtime for maintenance
The design, however, is more complex. It typically requires specialized magnetron cathodes and more precise alignment, increasing the system’s upfront cost and maintenance requirements.
Material Utilization Efficiency
One of the most compelling reasons for switching to rotatable targets is material utilization.
| Feature | Planar Targets | Rotatable Targets |
|---|---|---|
| Average utilization | ~30–40% | ~80–90% |
| Replacement frequency | Higher | Lower |
| Cost-effectiveness (long-term) | Lower | Higher |
Due to their geometry and rotation, rotatable targets consume more of the sputtering material before becoming unusable, significantly lowering the cost per square meter of deposited film.
Thin Film Uniformity and Deposition Rates
Film Uniformity
Uniformity is critical in applications like semiconductor fabrication and optical coatings, where nanometer-level variations can affect device performance. Rotatable targets generally offer:
- Better film thickness uniformity across large substrates
- Enhanced angular coverage due to continuous rotation
Planar targets can provide decent uniformity but are more prone to erosion grooves that cause non-uniform deposition over time.
Deposition Rate
Deposition rates are influenced by both the power density and target cooling efficiency. Rotatable targets, having better cooling due to their cylindrical structure and larger surface area, allow for:
- Higher power input
- Increased deposition rate
- Better thermal management
Planar targets, while adequate for many applications, may suffer from overheating at high power levels, limiting throughput in high-volume manufacturing.
Application Scenarios
When to Use Planar Targets
Despite their lower efficiency, planar targets are still widely used due to their simplicity and lower initial cost. They are ideal for:
- R&D laboratories: Where flexibility and quick target changes are important
- Low-volume production
- Applications requiring smaller coating areas, such as niche electronics or specialty optics
- Legacy equipment compatibility
When to Use Rotatable Targets
Rotatable targets shine in large-scale, high-throughput environments where efficiency and uptime are critical. Common use cases include:
- Flat panel display manufacturing: Especially for large OLED or LCD panels
- Photovoltaic solar cells: Where large-area deposition is common
- Architectural and automotive glass coating
- Hard coatings for cutting tools and mechanical parts
- Large-scale roll-to-roll coating systems
Maintenance and System Downtime
Maintenance needs are a major consideration in any manufacturing environment. Rotatable sputtering targets, with their extended lifespan, drastically reduce the frequency of target changes. This leads to:
- Less system downtime
- Higher equipment availability
- Lower labor costs
However, when maintenance is required, rotatable systems are more complex to service due to:
- Rotating seals
- Water cooling connections
- Larger cathode assemblies
Planar targets, being simpler, are quicker and easier to replace. This can be an advantage in systems where quick turnaround is more valuable than material efficiency.
Cost Considerations
Initial Investment
- Planar targets: Lower initial cost, both in materials and system configuration.
- Rotatable targets: Higher upfront investment due to additional hardware and complex cathode design.
Operating Cost
- Planar systems may result in higher operating costs over time due to:
- Frequent replacements
- Lower material usage
- Rotatable systems offer better long-term ROI through:
- Reduced downtime
- Higher utilization
- Improved process consistency
Ultimately, the total cost of ownership (TCO) favors rotatable targets for large-scale production environments.
Material Compatibility
Both planar and rotatable targets can be fabricated from a wide range of materials including:
- Pure metals: Aluminum, Copper, Molybdenum, Titanium
- Alloys: NiCr, TiAl, MoCr
- Ceramics: ITO (Indium Tin Oxide), Al₂O₃, ZnO
- Compounds: Tantalum Nitride, Titanium Oxide
However, rotatable targets can be more challenging to manufacture when using brittle materials like ceramics. Special bonding and tube-forming techniques are required to prevent cracking or delamination.
Environmental and Operational Stability
Rotatable targets offer a more stable operation in high-duty-cycle environments. Their continuous rotation and uniform wear contribute to:
- Better process stability
- Lower particulate contamination
- Enhanced film repeatability
For cleanroom conditions—like those in semiconductor fabs—this is a major advantage, reducing yield loss due to contamination or non-uniformity.
Trends and Technological Advancements
With the rise of smart displays, advanced solar cells, and IoT devices, sputtering technologies are evolving rapidly. Manufacturers are increasingly turning to rotatable targets for:
- Scaling up to larger substrate sizes
- Improving yield and throughput
- Meeting environmental regulations by reducing material waste
Some companies are now integrating hybrid systems capable of switching between planar and rotatable targets, offering greater flexibility and responsiveness to market needs.
Summary Table: Rotatable vs Planar Sputtering Targets
| Feature | Planar Target | Rotatable Target |
|---|---|---|
| Geometry | Flat | Cylindrical (rotating) |
| Utilization Efficiency | 30–40% | 80–90% |
| Maintenance Frequency | High | Low |
| Target Life | Short | Long |
| Cost (Initial) | Low | High |
| Cost (Long-term) | Higher | Lower |
| Film Uniformity | Medium | High |
| Deposition Rate | Moderate | High |
| Ideal Applications | R&D, small-scale | High-volume, large-area |
| Material Fabrication Ease | Easier | More complex |
Final Thoughts
Choosing between a rotatable and planar sputtering target isn’t a one-size-fits-all decision. It hinges on a careful assessment of your operational goals, equipment configuration, material needs, and production scale.
If your facility is focused on high-volume manufacturing, cost-per-unit optimization, and large-area coatings, rotatable targets offer undeniable advantages in performance, consistency, and efficiency. However, if your operation is research-oriented, budget-constrained, or uses legacy systems, planar targets remain a dependable and practical solution.
As vacuum deposition technologies continue to advance, the lines between these two systems may blur, with more hybrid and adaptive sputtering solutions coming into play. Nevertheless, understanding their fundamental differences ensures you can make informed decisions that align with both short-term project goals and long-term strategic outcomes.
FAQS
1. What is the main difference between rotatable and planar sputtering targets?
Rotatable targets are cylindrical and rotate during deposition to ensure even erosion and longer lifespan, while planar targets are flat and stationary, making them easier to use but less efficient.
2. Which type of sputtering target has better material utilization?
Rotatable targets typically offer higher material utilization (up to 90%) compared to planar targets (around 30–40%).
3. Are rotatable sputtering targets suitable for all coating systems?
No, rotatable targets require specialized equipment and magnetrons. They’re best suited for large-scale or high-volume production systems.
4. Is the film quality better with rotatable targets?
Generally, yes. Rotatable targets provide more uniform erosion and heat distribution, leading to more consistent thin film properties.
5. Which target type is more cost-effective?
Planar targets have a lower initial cost, but rotatable targets offer better long-term cost efficiency due to reduced downtime and higher material usage.
6. Can planar sputtering targets be used in high-power deposition?
They can, but rotatable targets are better at handling high-power input due to superior cooling and surface area.
7. How often do rotatable sputtering targets need to be replaced?
Much less frequently than planar targets—rotatable targets can last 2 to 3 times longer, depending on the application and process conditions.
8. Are rotatable targets harder to maintain?
Yes, they involve more complex systems with rotating seals and water-cooling connections, requiring more technical maintenance.
9. What industries typically use rotatable sputtering targets?
They’re common in architectural glass, solar photovoltaics, large-area displays, and automotive coatings.
10. Can I retrofit my planar sputtering system to use rotatable targets?
In some cases, yes—but it depends on the system’s design. Retrofitting may require significant upgrades to the cathode and cooling systems.
