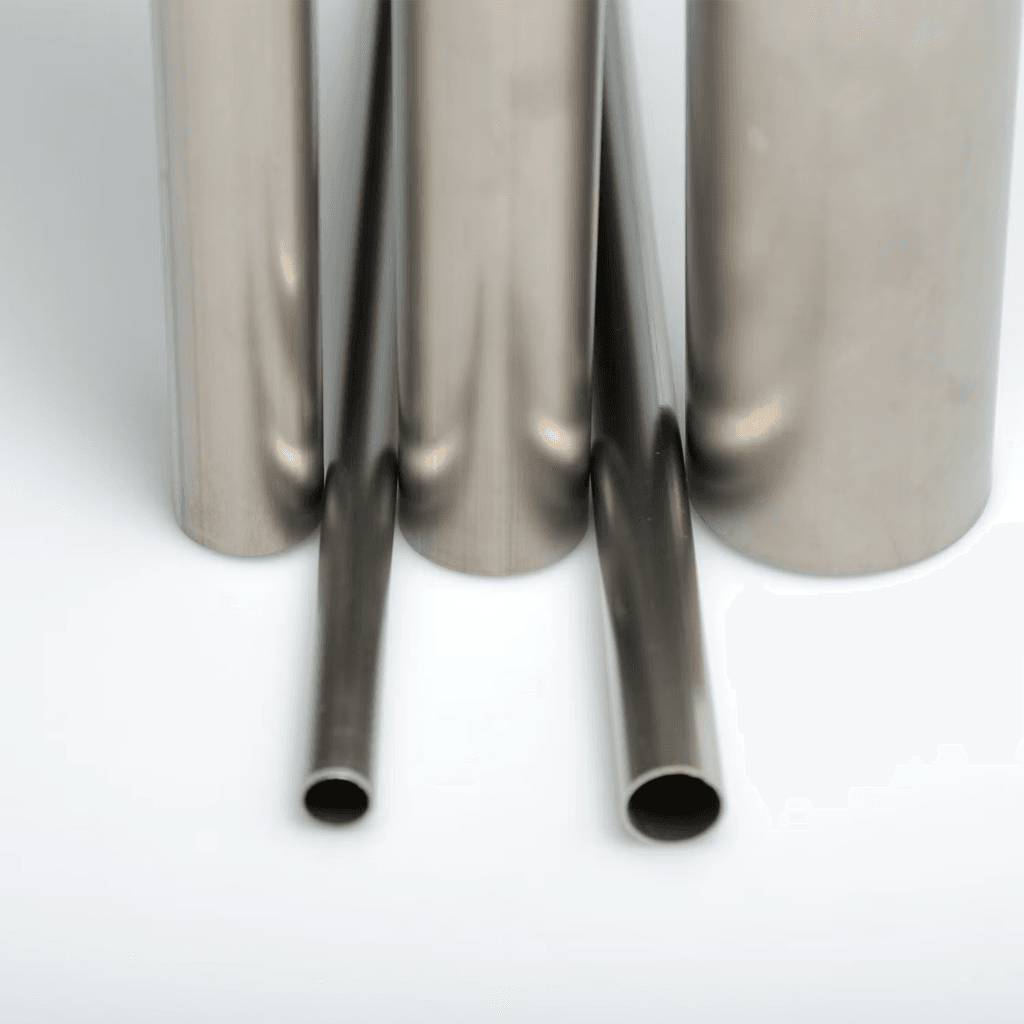

Introduction to Titanium Tube Pipe
Titanium tube pipes represent a pinnacle of engineering and materials science, offering an exceptional combination of strength, lightweight characteristics, and corrosion resistance. Whether used in aerospace components or in demanding chemical processing environments, titanium tubing has become indispensable for industries that require reliable, long-lasting solutions. This comprehensive exploration delves into the physical and chemical properties of titanium tube pipes, manufacturing methods, key applications, market insights, and common questions engineers and procurement specialists often have when selecting the right titanium alloy tubing for their projects.
The Unique Properties of Titanium Alloy Tubing
Titanium alloy tubing stands out because it merges the advantageous traits of pure titanium with those of carefully selected alloying elements. Commercially pure titanium, often referred to as Grade 2 titanium tubing, exhibits remarkable corrosion resistance and excellent formability. On the other hand, Grade 5 titanium (Ti‑6Al‑4V) tubing combines titanium with aluminum and vanadium to deliver superior strength and temperature performance. These distinctions make Grade 2 and Grade 5 titanium tubing the two most sought‑after categories of titanium tube pipe, each tailored to specific performance requirements.
At the heart of titanium’s appeal is its impressive strength‑to‑weight ratio. Titanium tube strength can match or even exceed that of certain stainless steels while weighing nearly half as much. This lightweight nature reduces overall system mass—critical in aerospace applications—without compromising structural integrity. Moreover, titanium’s high melting point and ability to withstand extreme temperatures ensure that titanium tube pipes maintain their integrity in harsh thermal environments.
Corrosion Resistance: A Key Advantage
One of the defining characteristics of titanium tube pipes is their corrosion resistance. In highly aggressive media—such as seawater, chlorine‑bearing solutions, and acidic or alkaline environments—titanium exhibits superior longevity compared to many alternative materials. This corrosion resistance stems from a naturally forming, adherent oxide layer on the titanium surface, which continually regenerates if damaged.
For industries like chemical processing, where equipment longevity and safety are paramount, corrosion‑resistant titanium tubes minimize downtime and maintenance costs. Marine applications also benefit from titanium’s ability to resist saltwater corrosion, making titanium tubing for marine heat exchangers and desalination plants a preferred choice.
Manufacturing Methods for Titanium Tube Pipe
Producing high‑quality titanium tube pipe involves specialized manufacturing processes to preserve the metal’s desirable properties. The two primary methods are seamless extrusion and welded tubing fabrication.
In seamless extrusion, a solid titanium billet is heated and forced through a die to create a continuous tube. This method yields tubing with uniform mechanical properties and a smooth surface finish, ideal for critical applications such as aerospace hydraulic lines and high‑pressure chemical reactors.
Welded titanium tube pipes begin as flat titanium sheets or coils, which are rolled into a tubular shape and joined along the seam using advanced welding techniques, such as Tungsten Inert Gas (TIG) welding. Post‑weld heat treatment ensures that the weld zone matches the mechanical and corrosion resistance properties of the base metal. Custom titanium tubing manufactured via welding can accommodate larger diameters and longer lengths, making it suitable for large‑scale installations like industrial piping networks.
Standards and Specifications for Titanium Tube Pipe
Adherence to international standards guarantees that titanium tube pipe meets stringent requirements for performance and safety. Commonly referenced standards include ASTM B338 for seamless and welded titanium and titanium‑alloy tubes and ASTM B861 for welded titanium tubing. These standards specify chemical composition, mechanical properties, dimensional tolerances, and testing procedures.
Manufacturers often provide titanium tubing in a variety of wall thicknesses and diameters, from small‑bore tubes under one inch in diameter to large pipes exceeding several inches. Custom sizes can be produced to meet precise project specifications, ensuring that titanium tube pipes integrate seamlessly with existing systems.
Applications of Titanium Tube Pipe Across Industries
Titanium tube pipe finds application in a wide array of sectors, each capitalizing on its unique combination of properties:
Aerospace: In aircraft hydraulic systems, fuel lines, and structural components, titanium tubing offers weight savings without sacrificing strength. The corrosion‑resistant nature of titanium also ensures longevity in environments exposed to hydraulic fluids and temperature extremes.
Medical Devices: Titanium’s biocompatibility makes it an ideal material for surgical implants, orthopedic devices, and dental prosthetics. While small titanium tubes are used in medical instruments and catheters, larger titanium tube pipes can be found in sterilization equipment and clean‑room piping.
Chemical Processing: Plants that handle corrosive chemicals rely on corrosion‑resistant titanium tubes for heat exchangers, reactors, and piping systems. The reduced risk of leaks and failures translates into safer operations and lower maintenance costs.
Marine and Offshore: Seawater cooling systems, desalination units, and offshore platforms leverage titanium’s resistance to saltwater corrosion. Titanium tube pipe helps extend the service life of critical equipment in marine environments.
Automotive and Motorsports: High‑performance vehicles incorporate titanium tubing for exhaust systems, roll cages, and suspension components. The lightweight advantage enhances vehicle agility and fuel efficiency.
Energy and Power Generation: In power plants—especially those using combined‑cycle gas turbines—titanium tube pipes serve in heat recovery steam generators and condenser tubing, where corrosion resistance and high‑temperature performance are crucial.
Market Insights and Pricing Trends
The global titanium tube pipe market has experienced steady growth, driven by increased demand in aerospace, medical, and chemical processing industries. As manufacturers scale production and optimize processes, titanium tube price fluctuations have moderated, although prices remain higher than those of conventional materials due to titanium’s raw material costs and specialized fabrication requirements.
Key factors influencing market dynamics include:
- Raw Material Availability: Titanium sponge production and downstream alloying capacity directly impact supply and pricing. Investments in new sponge facilities can help stabilize the market.
- Technological Advancements: Improved manufacturing techniques, such as near‑net‑shape extrusion and automated welding, reduce production costs and expand the range of available sizes and grades.
- Regulatory Requirements: Stricter environmental and safety regulations in chemical processing and aerospace sectors drive the adoption of high‑performance materials like titanium tube pipes.
Purchasing managers should engage with reputable titanium tube manufacturers to secure competitive pricing and ensure compliance with all relevant standards. Bulk orders and long‑term supply agreements often yield the most favorable terms.
Custom Titanium Tubing Solutions
For projects with unique specifications, custom titanium tubing offers tailored solutions. Manufacturers can adjust alloy composition, wall thickness, and surface finish to meet specialized performance criteria. For example, enhanced surface treatments—such as electropolishing—further improve corrosion resistance and reduce bacterial adhesion in medical or food processing applications.
When seeking custom titanium tubing, it is essential to collaborate closely with engineering teams to define requirements clearly. Detailed discussions regarding operating pressure, temperature range, and environmental exposure ensure that the final product performs reliably throughout its service life.
Integrating Titanium Tube Pipe into Your Systems
Successful integration of titanium tube pipe into existing systems requires careful planning. Engineers must consider factors such as:
- Compatibility with Joining Methods: Whether using welded, flanged, or compression fittings, the joining technique must preserve titanium’s integrity. TIG welding with high‑purity argon shielding gas is often recommended to avoid contamination.
- Thermal Expansion: Titanium’s coefficient of thermal expansion differs from that of steel or other materials. Proper allowances and flexible connections prevent undue stress during temperature fluctuations.
- Inspection and Testing: Non‑destructive testing methods—such as ultrasonic inspection and eddy current testing—verify weld quality and detect potential defects before installation.
By addressing these considerations early in the design phase, project teams can minimize installation challenges and ensure long‑term reliability.
Surface Treatments and Coatings for Titanium Tube Pipe
Surface treatments and specialized coatings can further enhance the performance of titanium tube pipes in demanding environments. Processes such as electropolishing remove microscopic surface asperities, improving corrosion resistance and reducing bacterial adhesion—critical for medical and food‑grade applications. Physical vapor deposition (PVD) coatings can deposit wear‑resistant layers like titanium nitride (TiN) or diamond‑like carbon (DLC) to extend service life in abrasive or erosive conditions. Understanding the right combination of base alloy and surface treatment allows engineers to tailor titanium tubing for maximum durability.
Sustainability and Recycling of Titanium Tubing
As industries prioritize environmental responsibility, the recyclability of titanium has become a significant advantage. Titanium scrap—whether from manufacturing offcuts or end‑of‑life components—can be re‑melted and re‑alloyed with minimal loss of mechanical properties. Closed‑loop recycling programs reduce raw material demand and carbon footprint. Additionally, life‑cycle assessments (LCAs) demonstrate that, despite higher initial energy input during production, titanium tubing’s longevity and recyclability often yield a lower overall environmental impact compared to less durable alternatives.
Future Trends in Titanium Tube Pipe Technology
Advancements in additive manufacturing (AM) and near‑net‑shape extrusion are poised to revolutionize titanium tube pipe production. AM techniques like directed energy deposition (DED) allow for complex internal geometries—such as integrated cooling channels—previously unattainable with conventional methods. Simultaneously, digital twin modeling and real‑time process monitoring are improving quality control, reducing waste, and accelerating development cycles. These innovations will expand titanium tubing’s applicability in next‑generation aerospace, energy, and biomedical systems.
Case Studies: Real‑World Applications of Titanium Tubing
Examining real‑world implementations underscores titanium tube pipe’s versatility. In one offshore desalination plant, titanium condenser tubes operated reliably for over a decade in high‑salinity seawater, slashing maintenance costs by 60%. An aerospace OEM reported a 15% weight reduction in hydraulic systems by switching from stainless steel to Grade 5 titanium tubing, translating to fuel savings and increased payload capacity. In the medical field, a major hospital integrated electropolished Grade 2 titanium piping in its sterile water system, eliminating corrosion‑related downtime and ensuring regulatory compliance. These case studies illustrate how titanium tubing delivers tangible performance and economic benefits across sectors.
Frequently Asked Questions
What are titanium tube pipes used for in the aerospace industry?
Titanium tube pipes are widely utilized in aerospace for hydraulic lines, fuel distribution systems, and structural supports due to their lightweight nature and high strength. The corrosion resistance of titanium also helps maintain system integrity under harsh operating conditions.
How does Grade 2 titanium tubing differ from Grade 5 titanium tubing?
Grade 2 titanium tubing, composed of commercially pure titanium, offers excellent corrosion resistance and formability. In contrast, Grade 5 titanium tubing (Ti‑6Al‑4V) contains aluminum and vanadium, providing higher tensile strength and better performance at elevated temperatures, making it suitable for demanding mechanical applications.
Can titanium tubes be welded, and what methods are recommended?
Yes, titanium tubes can be welded. The most common method is TIG welding using high‑purity argon shielding to prevent contamination. Proper cleaning of the weld area and controlled heat input are critical to achieving defect‑free welds.
Are titanium tube pipes suitable for high‑pressure applications?
Titanium tube pipes exhibit high yield strength, allowing them to handle significant internal pressures. Their excellent corrosion resistance further ensures that high‑pressure systems remain leak‑free and safe over extended service periods.
How does titanium tubing perform in extreme temperature environments?
Titanium tubing retains its mechanical properties in both high and low temperature extremes. It resists embrittlement at low temperatures and maintains strength at elevated temperatures up to approximately 400°C, depending on the alloy grade.
What factors influence the price of titanium tube pipes?
The price of titanium tube pipes depends on alloy grade, dimensional requirements (diameter and wall thickness), manufacturing method (seamless vs. welded), surface finish, and market demand for raw titanium sponge and alloying elements.
Is custom titanium tubing available for specialized applications?
Absolutely. Manufacturers offer custom titanium tubing in specific sizes, grades, and finishes to meet unique project requirements. Collaboration between engineers and suppliers ensures that the custom tubing aligns with operational parameters.
How do titanium tube pipes compare to stainless steel pipes?
Titanium tube pipes are lighter and offer superior corrosion resistance compared to stainless steel pipes. While stainless steel may be more cost‑effective for certain applications, titanium’s performance advantages justify its use in critical and high‑performance environments.
What inspection methods ensure the quality of titanium tubing?
Non‑destructive testing techniques—such as ultrasonic inspection, eddy current testing, and radiographic examination—are commonly employed to detect internal and surface defects in titanium tubing, ensuring compliance with stringent quality standards.
Where can I purchase high‑quality titanium tube pipes?
High‑quality titanium tube pipes can be sourced from specialized manufacturers and distributors who comply with ASTM standards and provide material certifications. Engaging with established suppliers guarantees traceability and consistent product performance.
Conclusion
Titanium tube pipes have earned their reputation as a premier choice for industries demanding lightweight, high‑strength, and corrosion‑resistant materials. From aerospace and medical devices to chemical processing and marine applications, the versatility of titanium tubing addresses a broad spectrum of challenges. By understanding the distinctions between Grade 2 and Grade 5 titanium tubing, familiarizing oneself with manufacturing processes, and adhering to relevant standards, engineers and procurement specialists can make informed decisions that enhance system performance and longevity. As market dynamics continue to evolve, staying abreast of advancements in titanium fabrication and supply chain developments will ensure that projects capitalize on the full potential of titanium tube pipe technology.
