Quick answer: Select sputtering targets for a spacecraft thermal-control coating only after the required solar absorptance, infrared emittance, electrical behavior, environment, substrate, stack architecture and end-of-life limits are defined. A target supplies material to a deposition process; it does not guarantee a coating’s thermo-optical properties, atomic-oxygen resistance, adhesion, contamination behavior or mission life. Qualify the complete deposited stack under measurements and exposures that represent the intended use.
What a Spacecraft Thermal-Control Coating Must Control
A spacecraft surface exchanges heat primarily by radiation and, where it contacts other structures, by conduction. A thermal-control coating changes how the surface absorbs incident radiation and emits thermal radiation. The two headline quantities are usually solar absorptance, αs, and hemispherical infrared emittance, ε. Neither quantity is a universal “high is good” or “low is good” target. The required combination depends on whether the surface must reject heat, retain heat, absorb solar energy, limit touch temperature or support another thermal design function.
Specify the wavelength range, temperature range, geometry, view factors, substrate, internal heat load and beginning-of-life/end-of-life limits before choosing a coating stack. NASA test programs show that ultraviolet, vacuum ultraviolet, atomic oxygen, contamination and thermal cycling can change surface properties, so initial αs/ε values alone are not sufficient for a mission decision.
Coating Function Comes Before Material Name

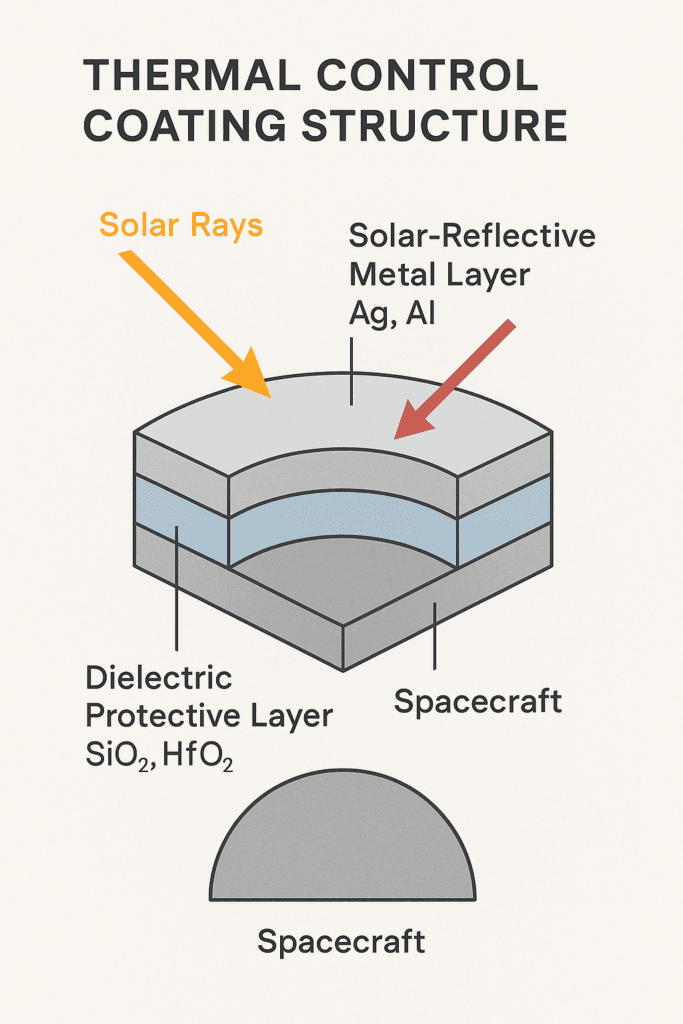

| Stack role | Materials that may be evaluated | What must be demonstrated |
|---|---|---|
| Reflective metal layer | Aluminum, silver or another design-specific metal | Spectral reflectance after deposition and environmental exposure; adhesion, continuity, corrosion/oxidation and compatibility with adjacent layers |
| Dielectric or protective layer | SiO2, Al2O3 or another oxide selected for the optical and environmental design | Thickness-dependent optical response, defects, pinholes, stress, adhesion and protection under the relevant environment |
| Conductive transparent layer | ITO or another transparent conducting oxide | Sheet resistance, spectral response, charge-control function, mechanical integrity and interaction with the underlying optical stack |
| Variable-emittance layer | VO2-based or another research-specific thermochromic/electrochromic system | Transition temperature, hysteresis, emittance range, cycling, vacuum performance, stack dependence and environmental stability |
These material families describe possible functions, not flight-qualified recipes. A multilayer coating can behave differently from each constituent layer because optical interference, interface reactions, roughness, thickness error and defects alter the final response.
Commercial Source Paths for Engineering Review
TFM’s current source-material paths include Silver Sputtering Target, Aluminum Sputtering Target, Silicon Dioxide Sputtering Target, Aluminum Oxide Sputtering Target, ITO Sputtering Target and Vanadium Dioxide Sputtering Target. The wider Sputtering Targets catalog supports material discovery.
These links are procurement starting points. They do not establish aerospace qualification, coating performance or suitability for a particular orbit, vehicle or mission. Supply the coating design and acceptance evidence required for technical review.
Define Beginning-of-Life and End-of-Life Requirements
A coating can meet an initial optical value and still fail the system requirement after exposure. Define both beginning-of-life and end-of-life limits for the actual thermal model. The test sequence should represent the most important environmental drivers rather than use a generic “space grade” label.
| Environment or interface | Possible change | Evidence to plan |
|---|---|---|
| UV and vacuum UV | Color centers, chemical change or increased solar absorptance | Spectral data before/after a defined dose, with temperature and vacuum conditions recorded |
| Atomic oxygen | Erosion, oxidation, roughening or attack through coating defects | Representative fluence/energy test, mass or thickness change, microscopy and post-exposure optical properties |
| Thermal cycling | Stress evolution, cracking, delamination or resistance drift | Defined temperature limits, ramp/dwell, cycle count, adhesion/inspection and functional measurements |
| Contamination and handling | Absorptance increase, interface loss or surface damage | Witness coupons, cleanliness/handling record, outgassing or deposition controls and spectral remeasurement |
| Electrical charging requirement | Surface-potential or discharge risk if conductivity is inadequate or nonuniform | Sheet/surface resistance map, grounding/interface design and environmental test appropriate to the system |
How the Target and Deposition Process Affect the Stack
Target chemistry, density, porosity, phase and electrical behavior can affect plasma stability, particles, rate and material transfer. Geometry, backing, bond integrity and cooling influence thermal gradients and erosion. These source characteristics interact with pressure, gas chemistry, power mode, target-to-substrate geometry, substrate motion, bias, temperature and chamber condition.
For a reactive oxide or nitride process, record the reactive-gas control method and target-surface state. For a pre-compounded ceramic target, confirm power-supply compatibility and qualify conditioning, arcing, thermal behavior and erosion on the actual cathode. The nominal target composition does not prove the composition or optical constants of the deposited film.
Seven Target-Selection Inputs
- Layer function and stack order: identify which layer reflects, emits, protects, conducts, switches or controls an interface.
- Material and composition basis: state nominal chemistry, intentional dopants, composition units and allowed variation.
- Impurity and evidence requirements: name critical impurities and distinguish typical, guaranteed and lot-measured data.
- Target geometry and cathode fit: provide shape, dimensions, tolerances, edge/end design, clamp/shield clearances and cathode model.
- Backing, bonding and cooling: supply the backing drawing, bond constraints, total thickness, cooling interface and inspection requirement.
- Electrical/process compatibility: define power mode, known resistivity limits, reactive gas, expected duty and conditioning constraints.
- Acceptance and traceability: agree the dimensional, composition, density/porosity, bond, packaging and lot-document checks before manufacture.
Coating Qualification Workflow
- Model the surface requirement: establish αs, ε and other functional limits for the defined geometry and temperatures.
- Design the stack: assign each layer a measurable optical, electrical, protective or switching function.
- Lock source and process records: document target identity, backing/bond, chamber condition, gas, pressure, power, geometry, substrate preparation and temperature.
- Measure the as-deposited stack: collect spectral reflectance/transmittance, calculated absorptance/emittance, thickness, composition, structure, roughness, stress, adhesion and resistance as applicable.
- Apply representative exposures: use the relevant UV/VUV, atomic oxygen, vacuum, thermal-cycle, contamination or charging test with dose and sequence recorded.
- Re-measure and compare with limits: assess both absolute end-of-life values and change from the beginning-of-life state.
- Repeat across coupons, locations and runs: one favorable sample does not establish coating or target repeatability.
Spacecraft Thermal-Coating Target RFQ Checklist
- Layer function and position in the coating stack
- Material, nominal composition, dopant and composition basis
- Required purity evidence and named impurity limits
- Target shape, dimensions, tolerances, quantity and drawing
- Cathode model, clamp/shield clearances and power-supply type
- Free-standing or bonded configuration; backing and bond constraints
- Cooling, ramp, conditioning and intended duty information
- Required density, porosity, phase, microstructure or bond inspection method
- Substrate, underlayer/overlayer, deposition route and thermal budget
- Beginning-of-life and end-of-life optical/electrical acceptance limits
- Environmental exposure, coupon and traceability requirements
- Cleaning, packaging, labeling and documentation requirements
Contact TFM with the target or backing drawing and the known coating requirements. Treat unlisted aerospace qualification, composition, dimensions, bonding, inspection, testing or delivery needs as review items rather than assumed capabilities.
Evidence Boundary
Evidence boundary: This guide does not claim that any TFM target or coating is flight-qualified, mission-proven or compliant with a particular aerospace standard. It does not specify a universal material, stack, purity, density, grain size, pressure, power, gas ratio, thickness, αs, ε, atomic-oxygen life, UV/VUV stability, thermal-cycle life, adhesion, electrical behavior, target life or lead time. Published results belong to the reported coating stack, substrate, process, environment and measurement method. Qualify the complete coating for the intended system.
Technical References
- Dever et al., Evaluation of Thermal Control Coatings for Use on Solar Dynamic Radiators in Low Earth Orbit, NASA (1990).
- NASA Goddard Space Flight Center Thermal Coatings Handbook.
- Design, deposition and characterization of multilayer thermal-control coatings, NASA Technical Reports Server.
- Electrically conductive thermal-control coatings: development and testing report, NASA.
- Changes in optical properties of polymeric materials due to atomic oxygen in very low Earth orbit, Acta Astronautica (2023).
- Cryothermal-vacuum measurement of VO2-based variable-emittance coatings, Applied Thermal Engineering (2021).
- VO2-based intelligent thermal-control coating with an Ag/SiO2/VO2 stack, Journal of Alloys and Compounds (2022).
