Metal Sputtering Targets: Key to Advanced Coating Technology
Metal sputtering targets are specially fabricated materials used in the sputtering process, a physical vapor deposition (PVD) technique. In this process, the target material is bombarded with high-energy particles, causing atoms to eject from its surface and form a thin, uniform coating on a substrate. These coatings are crucial for producing high-performance surfaces in numerous industries.
TFM provides high-purity Metal Sputtering Targets both in Planar Type for traditional PVD setups and Rotary Type for large-scale or continuous coating process.
Metal Sputtering Targets Product List
Pure Metal Sputtering Targets: Planar & Rotary Type
Properties and Features of Metal Sputtering Targets
TFM’s Metal Sputtering Targets boast superior properties:
- High Purity: Up to 99.9999%, Ensures contamination-free coatings for sensitive applications like semiconductors and medical devices.
- Thermal Stability: Resists deformation in high-temperature processes.
- Conductivity: Ideal for creating conductive coatings. Built to withstand demanding processes with minimal material loss.
- Consistency: Provides uniform sputtering, even in high-volume production settings
- Customizability: Available in various shapes, sizes, and materials, including planar and rotary designs.
Applications of Metal Sputtering Targets
Metal sputtering targets are integral to various industries:
- Semiconductors: Manufacturing microchips and electronic components.
- Optics: Producing anti-reflective and conductive coatings.
- Aerospace: Coating high-performance materials for extreme conditions.
- Energy: Used in solar panels, fuel cells, and other renewable energy solutions.
- Decorative Coatings: Adding wear-resistant finishes to tools and jewelry.
TFM: A Trusted Manufacturer of Metal Sputtering Targets
With extensive experience in the production of metal sputtering targets, TFM is a leading manufacturer known for producing high-quality sputtering targets. We take pride in delivering exceptional performance and ensuring that every target is accompanied by a certificate of analysis and Safety Data Sheet (SDS) for complete transparency.
At TFM, we understand that every client has unique requirements. As a reliable supplier of sputtering targets, we offer customized products made from high-purity raw materials with extremely fine grain sizes. These tailored solutions guarantee consistent microstructures, resulting in longer target lifespans and superior characteristics for the sputtered thin films.
Explore our full range of pure metal sputtering targets. Click on the Details button for more details, and feel free to Get A Quote for affordable prices and high-quality solutions tailored to your needs.
Pure Metal Targets: A Comprehensive Overview
Pure metal targets represent one of the fundamental building blocks of modern materials processing and advanced manufacturing. Their unique properties, combined with rigorous production and quality control measures, make them indispensable in applications ranging from thin film deposition and vacuum coating to microelectronics and renewable energy devices. In this article, we explore the science, technology, and market trends behind pure metal targets, along with the challenges and future opportunities that lie ahead.
Table of Contents
Chapter 1
1. Introduction
1.1. Defining Pure Metal Targets
At its most basic level, a pure metal target is a material specimen—typically engineered to have high chemical purity and well-defined physical properties—used as a source material in various deposition and fabrication processes. Unlike alloyed materials or composite targets, pure metal targets consist predominantly of one element, ensuring predictable performance during industrial processes. Their applications include sputtering in thin film deposition, plasma etching, and numerous catalytic and electronic manufacturing techniques.
1.2. The Significance of Purity
The purity of metal used in target production is not a trivial concern. Many high-technology industries, including microelectronics, semiconductors, and energy systems, require materials with minimal impurities to ensure reliability, longevity, and optimal functionality. Even trace levels of contaminants can compromise device performance or lead to variability in manufacturing processes. Therefore, controlling the purity level—from refining raw materials to the final preparation of the target—is a critical aspect of quality assurance in industrial production.
1.3. Historical Context and Evolving Demands
The evolution of pure metal targets can be traced to advancements in metallurgical techniques and vacuum technology over the past several decades. Early in the history of metallurgy, processes for melting and casting metals did not allow for tight control of impurities. However, as demands for high-performance electronics, precision optics, and specialized coatings increased, the industry moved toward methods that emphasize exceptional purity. Developments in vacuum distillation, zone refining, and electrochemical deposition have all contributed to our ability to create and use pure metal targets effectively today.
1.4. Overview of the Article
This article delves deeply into the materials science, processing techniques, applications, and economic impact of pure metal targets. We provide an extensive review of their production, including purification methods and quality control measures, before examining their role in modern industrial processes. We then explore market trends and technological innovations that are shaping the future of pure metal targets, concluding with an analysis of emerging challenges and research directions.
Chapter 2
2. Historical Development and Evolution
2.1. Early Metallurgy and the Quest for Purity
Historically, metallurgy evolved from ancient techniques focused on the extraction of metals from ores to more refined processes aimed at obtaining materials with fewer defects and impurities. Early artisans utilized rudimentary smelting methods that could not control impurities effectively. As civilizations advanced, methods such as cupellation and refining via repeated melting and casting began to appear. However, it was not until the industrial revolution that significant strides were made towards achieving the purity levels necessary for modern applications.
2.2. The Advent of Modern Refinement Techniques
The twentieth century marked a watershed moment in the development of pure metal targets. New processes—including vacuum distillation, zone refining, and chemical vapor deposition—emerged as essential tools for reducing impurity levels. For instance, zone refining became a cornerstone technique in semiconductor manufacturing, where silicon purity is critical for device performance. Similar methods were adapted for other metals, ensuring that industrial processes could consistently achieve the high purity required for use as sputtering targets or other specialized components.
2.3. Influence of High-Tech Industries
The rapid growth of high-tech industries catalyzed the need for materials with predictable and uniform behavior. The electronics boom, in particular, pushed research into pure metal targets. Semiconductor devices, which are highly sensitive to the presence of unwanted ions or contaminants, necessitated the development of metal targets with unmatched consistency and performance. Additionally, advancements in plasma technology, used extensively in thin film deposition, demanded targets that could deliver excellent erosion characteristics and minimal contamination over prolonged operational periods.
2.4. Integration into Modern Manufacturing
As manufacturing technologies evolved, the integration of pure metal targets into production lines became standardized. Automated deposition systems, precision sputtering machines, and sophisticated monitoring tools enabled companies to incorporate pure metal targets into their processes with increasing reliability. Over time, these technologies have become fundamental to sectors ranging from consumer electronics to aerospace and defense, ensuring that devices and components meet both performance and safety standards.
Chapter 3
3. Fundamental Characteristics of Pure Metal Targets
3.1. Chemical Purity and Composition
The hallmark of a pure metal target is its chemical composition. Typically defined as containing a single metallic element with impurity levels in the parts per million (ppm) range, these targets are produced using specialized refining methods. The exact purity level required depends on the application; for instance, targets for semiconductor applications are often refined to extraordinarily high standards, while less critical applications might tolerate slightly higher levels of residual impurities.
3.2. Physical Properties
Key physical attributes of pure metal targets include density, melting point, thermal conductivity, and electrical resistivity. These parameters are essential for ensuring consistent performance in deposition processes. For example, when a target is used in a sputtering chamber, its erosion behavior, thermal stability, and uniformity play vital roles in determining the quality of the thin film deposited. Researchers and engineers must consider these characteristics when selecting or customizing a target for a specific application.

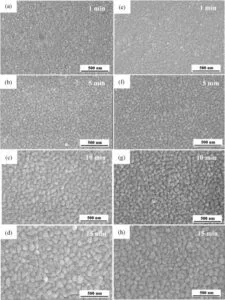

3.3. Microstructural Uniformity
Another essential characteristic is the microstructural uniformity of the target. This is governed by the manufacturing process and post-production treatments. Inhomogeneities, such as grain boundaries or residual internal stresses, can lead to non-uniform sputtering behavior. Advanced metallurgical techniques, such as homogenization heat treatments and controlled solidification processes, are employed to achieve a microstructure that supports even erosion and predictable performance over the target’s lifecycle.
3.4. Mechanical Stability and Durability
Pure metal targets must withstand harsh operating environments without degradation. Mechanical stability under high-vacuum conditions, resistance to thermal cycling, and robustness against physical erosion are among the key qualities that define a target’s performance. In many cases, the target is exposed to rapidly changing temperatures and bombardment by energetic particles, making structural integrity a crucial parameter. The durability of a target directly influences the downtime and maintenance requirements of manufacturing equipment.
3.5. Surface Quality and Finish
The surface condition of a pure metal target influences the initial phase of the deposition process. A smooth surface finish, free of defects or contaminant layers, contributes to a more consistent sputtering rate and reduces the risk of particulate contamination in the deposited film. As such, advanced surface preparation techniques—including polishing, chemical etching, and plasma cleaning—are commonly employed prior to integrating the target into deposition systems.
Chapter 4
4. Production and Purification Processes
4.1. Raw Material Sourcing
The journey toward a high-quality pure metal target begins with the selection and sourcing of raw materials. The quality of the starting material is of paramount importance; hence, suppliers often require detailed chemical analyses and trace impurity profiles from the raw ore. In many cases, the ore undergoes preliminary purification steps, such as flotation or leaching, to concentrate the desired metal prior to more intensive refining processes.
4.2. Advanced Refining Techniques
4.2.1. Vacuum Distillation
Vacuum distillation is a process that lowers the boiling point of the metal by reducing the ambient pressure, allowing impurities that have higher boiling points to be effectively separated. This technique is particularly useful for metals like aluminum or magnesium, where high thermal stability and low reactivity are required in the final target.
4.2.2. Zone Refining
Zone refining involves passing a molten zone through a solid metal bar. As the molten zone traverses the material, impurities tend to concentrate in the molten phase and are gradually moved to one end. This results in a substantially purer metal left behind. The technique is essential for semiconductor-grade materials and has been adapted for other metals where ultra-high purity is critical.
4.2.3. Electrolytic Refining
Electrolytic refining uses an electrochemical cell wherein the impure metal serves as an anode. When electrical current is applied, pure metal ions are deposited onto the cathode, leaving behind many of the impurities which either remain in solution or form a residue. This method is widely used for copper, nickel, and other conductive metals, offering a relatively low-cost path to high purity.
4.2.4. Chemical and Thermal Treatments
Additional purification steps, including chemical leaching or thermal annealing, may be used to refine the metal further. These methods remove specific contaminants, adjust crystal structure, and relieve internal stresses. In some cases, the metal may be subjected to controlled atmospheric treatments (e.g., hydrogen or inert gas atmospheres) to ensure minimal oxidation during processing.
4.3. Shaping and Machining
Once purified, the metal must be shaped into the desired form factor for a target. This involves precision machining techniques that ensure the final target possesses uniform thickness, surface finish, and precise dimensions. Technologies such as computer numerical control (CNC) machining and laser cutting are often employed to achieve the high tolerances demanded in high-precision applications.
4.4. Quality Control and Inspection
Quality control (QC) is integral to the production of pure metal targets. QC measures include advanced spectroscopic methods, scanning electron microscopy (SEM), X-ray diffraction (XRD), and other analytical techniques that verify both chemical purity and microstructural homogeneity. These techniques are critical for ensuring that each target meets stringent performance requirements, thereby minimizing the risk of defects in the final deposition process.
4.5. Packaging and Storage
Due to their high purity and sensitivity to contamination, pure metal targets require specialized packaging and storage conditions. Typically, targets are stored in cleanroom environments or vacuum-sealed packaging to prevent the deposition of airborne contaminants. These measures ensure that the target retains its pristine condition until it is integrated into the manufacturing process.
Chapter 5
5. Applications in Modern Industries
5.1. Thin Film Deposition and Sputtering
One of the most significant applications of pure metal targets is in thin film deposition processes such as magnetron sputtering and ion beam deposition. In these applications, pure metal targets are bombarded with ions in a vacuum chamber, causing atoms to be ejected from the target. These ejected atoms then condense on a substrate to form a thin, uniform film.
Semiconductor Industry: In semiconductor fabrication, thin films are used for interconnects, barrier layers, and reflective coatings. Given the sensitivity of semiconductor devices to contamination and process variation, the purity and microstructural uniformity of the metal target are essential.
Optical Coatings: In the production of mirrors, antireflection coatings, and solar control films, the optical quality and uniform deposition of metal films are critical. Pure metal targets help achieve these high standards, ensuring devices meet performance metrics for transparency, reflectivity, and durability.
5.2. Electronics and Microdevices
In electronic applications, metal targets contribute to the fabrication of microelectronic components such as transistors, diodes, and integrated circuits. The thin films derived from these targets serve as conductive layers, contact pads, and even as bases for further processing in multilayer devices. The electrical conductivity and predictable behavior of films originating from pure metal targets are crucial to device operation and longevity.
5.3. Renewable Energy and Photovoltaics
Pure metal films are also vital in renewable energy applications, particularly in the manufacture of solar cells and fuel cells. For instance, high-purity silver and aluminum targets are used to create conductive layers that improve the efficiency of photovoltaic cells. Likewise, in fuel cells, pure metal catalysts can enhance overall efficiency and durability under demanding operational conditions.
5.4. Aerospace and Defense Applications
The aerospace and defense sectors demand materials that exhibit exceptional performance under extreme conditions. Pure metal targets are used to deposit coatings that provide thermal protection, corrosion resistance, and improved mechanical properties. These coatings are vital in components ranging from turbine blades to structural elements exposed to harsh operating environments, ensuring both safety and longevity in critical applications.
5.5. Medical Devices and Biotechnology
In the biomedical field, pure metal targets are increasingly used in the manufacturing of implants, diagnostic devices, and other high-performance instruments. Thin film coatings derived from pure targets can enhance biocompatibility, improve wear resistance, and provide antimicrobial properties. The reliable quality of these films, combined with their adherence to strict regulatory standards, is paramount for applications within the health and medical sectors.
Chapter 6
6. Quality Assurance and Characterization Techniques
6.1. Analytical Techniques for Purity Assessment
Ensuring that pure metal targets meet exacting chemical purity standards requires a suite of analytical techniques. Spectroscopy methods—including inductively coupled plasma mass spectrometry (ICP-MS) and optical emission spectroscopy (OES)—are routinely employed. These techniques detect trace impurities at the parts-per-million level, thereby providing a rigorous validation of the target’s chemical composition.
6.2. Structural and Microstructural Analysis
X-Ray Diffraction (XRD): XRD is used to ascertain the crystallographic structure of the metal, ensuring that it meets specifications and exhibits a uniform microstructure.
Scanning Electron Microscopy (SEM): SEM offers high-resolution imaging of the target’s surface, detecting any defects or inhomogeneities that could affect the sputtering process.
Transmission Electron Microscopy (TEM): For ultra-high resolution, TEM reveals the arrangement of atoms and any sub-micron-level variations in the target structure.
6.3. Mechanical Property Testing
Mechanical properties such as tensile strength, hardness, and resistance to thermal cycling are critical parameters for targets. Standardized tests, including microhardness assessments and cyclic loading experiments, are conducted to ensure that a target can endure the stresses encountered during operational processing without degradation.
6.4. In-Process Monitoring and Non-Destructive Evaluation
Advanced in-line monitoring systems have been integrated into manufacturing lines to continuously assess the condition of a pure metal target. Techniques such as laser-based surface profiling and non-destructive ultrasonic testing provide real-time feedback on target quality, ensuring rapid intervention if any anomalies are detected.
6.5. Certification and Industry Standards
The manufacture and deployment of pure metal targets are governed by rigorous industry standards. Certifications such as ISO 9001 and other specific regulatory frameworks ensure that every batch of target material meets the highest quality benchmarks. These standards not only cover the entire production process—from raw material sourcing and refinement to final packaging—but also mandate periodic audits and third-party testing to maintain consistency and reliability.
Chapter 7
7. Economic Impact and Market Trends
7.1. Global Market Dynamics
The market for pure metal targets is experiencing steady growth, driven by demand in high-tech manufacturing sectors such as semiconductors, renewable energy, and aerospace. As end-user industries advance, the need for higher precision, larger production volumes, and improved efficiency in deposition processes continues to rise. Market analysts note that the ongoing miniaturization of electronic components and the global push toward sustainable energy solutions are significant catalysts for growth.
7.2. Investment in Research and Development
Substantial investments in research and development (R&D) have led to innovations in target fabrication and deposition technology. Companies are actively pursuing new alloys, improved refining methods, and smart manufacturing techniques that optimize the quality and performance of pure metal targets. These R&D initiatives are bolstered by collaborations between academic institutions, industry leaders, and government research agencies, ensuring a continuous stream of improvements and adaptations.
7.3. Supply Chain Considerations
Maintaining a robust and efficient supply chain is critical for the consistent production of pure metal targets. Fluctuations in raw material prices, geopolitical risks, and environmental regulations can impact supply dynamics. To mitigate these challenges, manufacturers are increasingly diversifying their sourcing strategies and investing in local production facilities that adhere to sustainable and environmentally responsible practices.
7.4. The Role of Emerging Economies
Emerging economies are playing an increasingly significant role in the pure metal target market. As these regions develop their high-tech manufacturing capabilities, they present new opportunities for both suppliers and end users. Increased domestic demand coupled with investments in state-of-the-art fabrication facilities is expected to drive market expansion further. Moreover, collaborations between multinational corporations and local manufacturers are creating a more integrated global supply chain, improving accessibility to high-purity targets worldwide.
7.5. Price Volatility and Market Projections
The market pricing for pure metal targets is influenced by various factors including production costs, technological advancements, and market demand. While price volatility remains an industry reality, long-term projections are generally optimistic, underpinned by the steady advancement of end-use technologies. Analysts project that the integration of automation and smart manufacturing techniques will eventually lower production costs, making high-purity targets more accessible across various sectors.
Chapter 8
8. Technological Innovations and Future Perspectives
8.1. Next-Generation Target Materials
Ongoing research is focused on developing next-generation target materials that not only offer higher purity but also improved performance characteristics. Innovations in nanostructured materials, for example, have the potential to change the landscape of thin film deposition, offering enhanced durability and new functional properties. Researchers are exploring the controlled incorporation of nanostructures into pure metal targets to better control film morphology and tailor the properties of the deposited layers.
8.2. Digital Transformation in Manufacturing
The digital transformation of manufacturing processes is paving the way for smarter, more efficient production methods. The integration of artificial intelligence (AI) and machine learning algorithms into quality control systems is enabling real-time process optimization and predictive maintenance for target production. Digital twins of manufacturing processes allow for simulation and analysis before actual production, reducing downtime and further improving the consistency of pure metal targets.
8.3. Advances in Sputtering and Deposition Techniques
Recent improvements in sputtering technology, including high-power impulse magnetron sputtering (HiPIMS) and pulsed DC sputtering, have enhanced the efficiency and precision of deposition processes that utilize pure metal targets. These techniques offer better control over deposition rate, film density, and the microstructural properties of the films. As deposition technology continues to evolve, the demand for highly specialized pure metal targets is expected to rise concomitantly.
8.4. Environmental Sustainability and Green Manufacturing
Environmental concerns are increasingly influencing every facet of production, including the manufacture of pure metal targets. Efforts to reduce the carbon footprint of high-temperature refining processes and the associated waste are driving the development of greener manufacturing methods. Innovations such as energy-efficient refining, waste recycling, and improved thermal management techniques are not only beneficial to the environment but also contribute to cost savings and regulatory compliance.
8.5. Overcoming Production Challenges
Despite the many advances, several challenges persist. Issues such as controlling microstructural inhomogeneities, managing thermal stresses during high-power deposition, and reducing production costs remain areas of active research. By tackling these challenges head-on, engineers and researchers are optimistic about significantly enhancing both the performance and reliability of pure metal targets in the near future.
Chapter 9
Frequently Asked Questions
1. What is a pure metal sputtering target?
A pure metal sputtering target is a single-element, high-purity metal source used in PVD processes to deposit thin films onto substrates.
2. What is the typical purity level of pure metal targets?
Most pure metal targets range from 99.9% (3N) to 99.999% (5N) purity, ensuring minimal contamination.
3. Which metals are commonly used as sputtering targets?
Common metals include Aluminum, Copper, Gold, Silver, Molybdenum, Titanium, Tantalum, and Tungsten.
4. What are the main applications of pure metal targets?
They are used in semiconductor fabrication, optical coatings, solar panels, hard coatings, and display technologies.
5. Can I request a custom shape or size for a sputtering target?
Yes, manufacturers like TFM offer custom metal sputtering target fabrication in discs, rectangles, rings, and more.
6. What is the difference between a pure metal target and an alloy target?
A pure metal target contains one metal element, whereas an alloy target comprises two or more metals blended for specific properties.
7. What is the standard backing plate material for metal targets?
Backing plates are typically Copper, Molybdenum, or Stainless Steel, chosen for thermal and mechanical compatibility.
8. What techniques are used to produce pure metal targets?
Methods include vacuum melting, hot pressing, cold isostatic pressing (CIP), and sintering.
9. How are pure metal targets bonded to backing plates?
Bonding techniques include indium bonding, elastomeric bonding, and diffusion bonding to ensure heat transfer and adhesion.
10. How do I store and handle pure metal targets to avoid contamination?
Store in vacuum-sealed packaging in a clean, dry area, and handle with gloves to prevent oxidation and fingerprint contamination.
Chapter 10
10. Future Directions and Challenges
10.1. Enhancing Purity and Material Performance
The quest for higher purity remains at the forefront of research and development. As process parameters become more refined, the goal is not only to reduce impurity levels but also to control the microstructure with ever greater precision. Future advancements are likely to focus on integrating real-time monitoring with automated corrective feedback in refining processes, enabling unprecedented levels of control over metal properties.
10.2. Broadening Application Areas
As industries continue to innovate, the applications for pure metal targets are set to broaden. The rapid evolution of fields such as flexible electronics, advanced sensors, and energy storage devices creates new demand for materials with exceptional reliability and performance. In response, manufacturers are likely to develop specialized targets tailored for these emerging applications. Collaborative efforts between academia and industry will be crucial in exploring these new frontiers.
10.3. Addressing Cost and Scalability Issues
One of the perennial challenges in the pure metal target industry is the balance between cost and performance. Ultra-high purity targets generally require more energy-intensive processes and strict quality control measures. Future research will focus on optimizing processes to reduce costs while still achieving the levels of purity demanded by high-end applications. Scaling these processes for mass production without sacrificing quality is a primary concern that drives ongoing research and industrial innovation.
10.4. Integrating Smart Manufacturing Technologies
The integration of smart sensors, machine learning algorithms, and advanced robotics into the manufacturing process is expected to revolutionize the production of pure metal targets. These technologies promise to deliver more consistent quality, reduce human error, and improve overall efficiency. As digital transformation continues to reshape manufacturing, companies that successfully implement these technologies will likely gain a competitive edge in the global marketplace.
10.5. Global Collaboration and Standardization
International collaboration plays a vital role in overcoming the technical and regulatory challenges associated with pure metal target production. Standardization of testing methods, best practices, and certification procedures across borders can facilitate smoother trade and improve overall quality. Multinational partnerships and research consortia are likely to drive future advances, helping the industry to overcome obstacles related to scaling, innovation, and environmental sustainability.
Chapter 11
11. Conclusion
Pure metal targets serve as a cornerstone in modern manufacturing, underpinning technologies that influence sectors as diverse as microelectronics, renewable energy, aerospace, and medical devices. The unwavering focus on chemical purity, microstructural uniformity, and mechanical stability underpins their crucial role in high-precision deposition processes. Through sophisticated refining methods and advanced quality control practices, the production of pure metal targets has reached levels that support the exacting demands of today’s technological landscape.
Continuous advances in material science, digital manufacturing, and sustainable practices ensure that the evolution of pure metal targets remains a dynamic field. As challenges such as cost, environmental impact, and scalability persist, the integration of innovative techniques—including smart manufacturing and enhanced process monitoring—will be critical in overcoming these obstacles.
Looking to the future, the development of next-generation targets, combined with a broadening of application areas, promises to further push the boundaries of technology. With ongoing international collaboration and a steadfast commitment to quality, pure metal targets will undoubtedly continue to be essential components in the fabrication of high-performance devices and systems.
In summary, the role of pure metal targets extends far beyond being simple source materials; they embody the intricate balance of purity, precision, and performance that defines modern industrial manufacturing. As industries evolve and markets expand, the refinement and application of pure metal targets will remain an active and essential field of innovation, driving improvements in efficiency, sustainability, and technological advancement worldwide.
